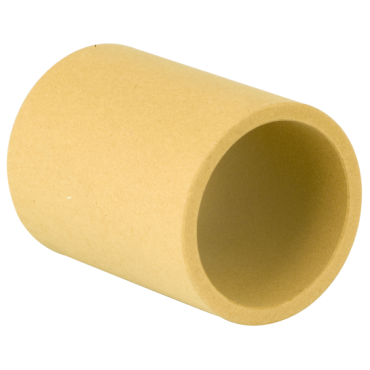

Furon BJ5S040604 BJ5 Series PTFE Bushing 1/4 ID x 3/8 OD x 1/2 Long

Product Description

The Furon BJ5S040604 is designed for use in various industrial applications where precision and durability are essential. This PTFE bushing has a bore size of one-fourth inch and an outer diameter of three-eighths inch. It is half inch long.

• Constructed from JLON® 5500 (PTFE) material
• Round bore design for secure fit
• Temperature range up to five hundred fifty degrees Fahrenheit

Product Highlights

This bushing is ideal for applications requiring both chemical resistance and high-temperature stability. It is suitable for various types of machinery.

Product Information

Standard Information

• Brand: Furon
• Part Number: 102051211

Technical Specifications

• Material: JLON® 5500 (PTFE)
• Bore Type: Round Bore
• I.D. Tolerance: +0.002 in / -0.000 in
• Length Tolerance: ±0.005 in
• I.D.: 1/4 in
• O.D. Tolerance: +0.002 in / -0.000 in
• Groove Type: No Groove
• Temperature Range [Max]: 550 °F
• Has Flange: No
• O.D.: 0.375 in
• Length: 1/2 in
• Weight: 0.03 LB
• EAN or UPC: 717905197864
