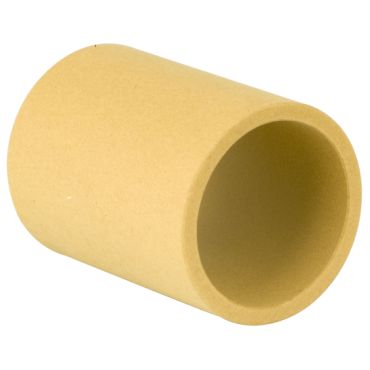

Furon BJ5S040603 BJ5 Series PTFE Bushing 1/4 ID x 3/8 OD x 3/8 Long

Product Description

The Furon BJ5S040603 is a BJ5 Series PTFE Bushing designed to support various applications that require precise dimensional stability and resistance to harsh conditions. This product features a quarter inch inner diameter and a three eighths inch outer diameter, with a length of three eighths inch.

• Made from JLON® 5500 (PTFE) material
• Round bore design for versatile applications
• Temperature range up to five hundred fifty degrees Fahrenheit

Product Highlights

This bushing is ideal for scenarios where low friction, high chemical resistance, and thermal stability are needed.

Product Information

Standard Information

• Brand: Furon
• Part #: 102055987

Technical Specifications

• I.D.: 1/4 in
• O.D.: 0.375 in
• Length: 3/8 in
• Material: JLON® 5500 (PTFE)
• Bore Type: Round Bore
• Temperature Range [Max]: 550 °F
• Weight: 0.02 LB
• EAN or UPC: 717905197819
• Has Flange: No
• Groove Type: No Groove
• I.D. Tolerance: +0.002 in / -0.000 in
• O.D. Tolerance: +0.002 in / -0.000 in
• Length Tolerance: ±0.005 in
