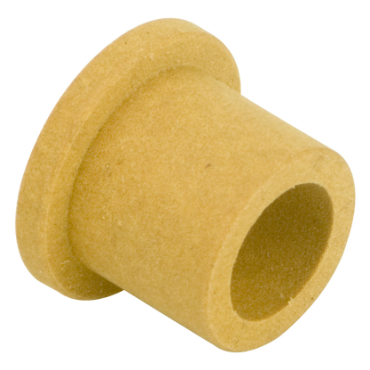

Furon BJ5F101406 BJ5 Series PTFE Bushing 5/8 ID x 7/8 OD x 3/4 Long Flanged Bushing

Product Description

The Furon BJ5F101406 is a BJ5 series PTFE bushing designed for durability and efficiency. This bushing features an inner diameter of five eighths inches and an outer diameter of seven eighths inches, making it suitable for various applications in plumbing and industrial settings. It is made from JLON 5500 PTFE material, known for its high-performance characteristics.

• Constructed with JLON 5500 PTFE material.
• Suitable for high-temperature applications with a maximum temperature range of five hundred fifty degrees Fahrenheit.
• Includes a flange for easy installation.

Product Highlights

This bushing is ideal for use in systems where wear resistance and low friction are essential. It provides reliable performance in a multitude of applications.

Product Information

Standard Information

• Brand: Furon
• Part Number: 102052923

Technical Specifications

• I.D.: 5/8 in
• O.D.: 0.875 in
• Length: 3/4 in
• Flange Thickness: 1/8 in
• Material: JLON 5500 (PTFE)
• Weight: 0.3 LB
• Bore Type: Round Bore
• Has Flange: Yes
• Temperature Range [Max]: 550 °F
• I.D. Tolerance: +0.002 in / -0.000 in
• O.D. Tolerance: +0.002 in / -0.000 in
• Length Tolerance: ±0.005 in
• Groove Type: No Groove
• Inch/Metric: Inch
• EAN or UPC: 717905197093
