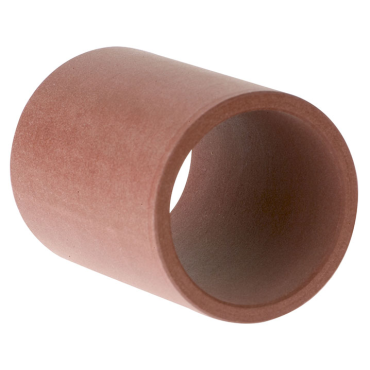

Furon BJ4S283214 BJ4 Series PTFE Bushing

Product Description

The Furon BJ4S283214 is a PTFE bushing designed for various applications requiring durability and resistance. With a size of one and three quarters inches internal diameter and two inches outer diameter, this bushing features a length of one and three quarters inches, making it suitable for both industrial and commercial use.

• Constructed from JLON® 4200 (PTFE) material.
• Features no groove design and round bore for versatility.
• Can withstand a maximum temperature of five hundred fifty degrees Fahrenheit.

Product Highlights

This bushing is ideal for use in environments where chemical resistance and high-temperature performance are critical.

Product Information

Standard Information

• Brand: Furon
• Part #: 102061241

Technical Specifications

• Inner Diameter (I.D.): 1 3/4 in
• Outer Diameter (O.D.): 2 in
• Length: 1 3/4 in
• Weight: 0.2 LB
• Material: JLON® 4200 (PTFE)
• Bore Type: Round Bore
• Groove Type: No Groove
• Temperature Range (Max): 550 °F
• I.D. Tolerance: +0.002 in / -0.000 in
• O.D. Tolerance: +0.002 in / -0.000 in
• Length Tolerance: ±0.005 in
