Furon BJ4S162008 BJ4 Series PTFE Bushing 1 ID x 1 1/4 OD x 1 Long

Product Description

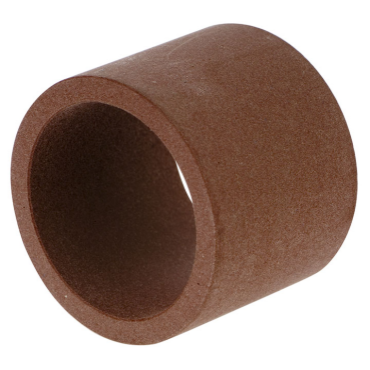

The Furon BJ4S162008 is a PTFE bushing designed for diverse applications requiring precision. This component features an inner diameter of one inch and an outer diameter of one and one-quarter inches, with a length of one inch. The bushing is made from JLON® 4200 material, ensuring durability and resistance to harsh chemicals.

• Inner diameter: one inch
• Outer diameter: one and one-quarter inches
• Length: one inch

Product Highlights

This PTFE bushing is suitable for various industrial uses. Its round bore type allows for easy installation in compatible fittings. It does not include a flange and is designed without grooves, providing a seamless fit.

Product Information

Standard Information

• Material: JLON® 4200 (PTFE)
• Temperature Range [Max]: 550 °F

Technical Specifications

• I.D.: 1 inch
• O.D.: 1.25 inches
• Length: 1 inch
• Weight: 0.04 LB
• Bore Type: Round Bore
• Has Flange: No
• Groove Type: No Groove
• Inch/Metric: Inch
• EAN or UPC: 717905195228
