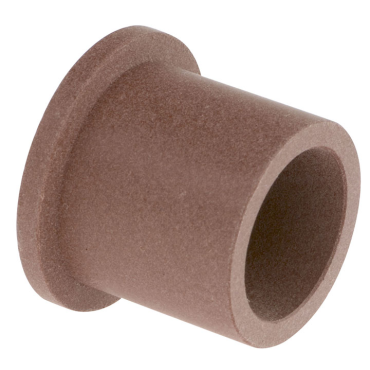

Furon BJ4F081206 PTFE BJ4 Flanged Bearings

Product Description

The Furon BJ4F081206 is a PTFE flanged bearing designed for various applications. It features a half-inch inner diameter and a three-quarter-inch outer diameter. This bearing has a flange, and its length is three-quarters of an inch. The material used is PTFE BJ4, which provides excellent chemical resistance and durability.

• Flanged design for secure mounting
• Wide temperature range from minus two hundred fifty degrees Fahrenheit to five hundred fifty degrees Fahrenheit
• Round bore type for compatible fitting

Product Highlights

Ideal for applications requiring reliable and resilient bearings, especially suited for harsh environments.

Product Information

Standard Information

• Brand: Furon
• Part Number: BJ4F081206

Technical Specifications

• I.D.: 1/2 in
• O.D.: 0.75 in
• Length: 3/4 in
• Weight: 0.02 LB
• Material: PTFE BJ4
• Bore Type: Round Bore
• Has Flange: Yes
• Temperature Range [Max]: 550 °F
• Temperature Range [Min]: -250 °F
• Groove Type: No Groove
• Inch/Metric: Inch
• Flange Thickness: 0.125 in
• Length Tolerance: +/- 0.005 in
• Actual I.D. [Max]: 0.5060 in
• Actual O.D. [Max]: 0.7530 in
• Actual O.D. [Min]: 0.7510 in
• Flange O.D. Tolerance: +/- 0.005 in
• Housing Bore Tolerance: +0.000 in / -0.001 in
• Flange Thickness Tolerance: +/- 0.003 in
• EAN or UPC: 717905193637
