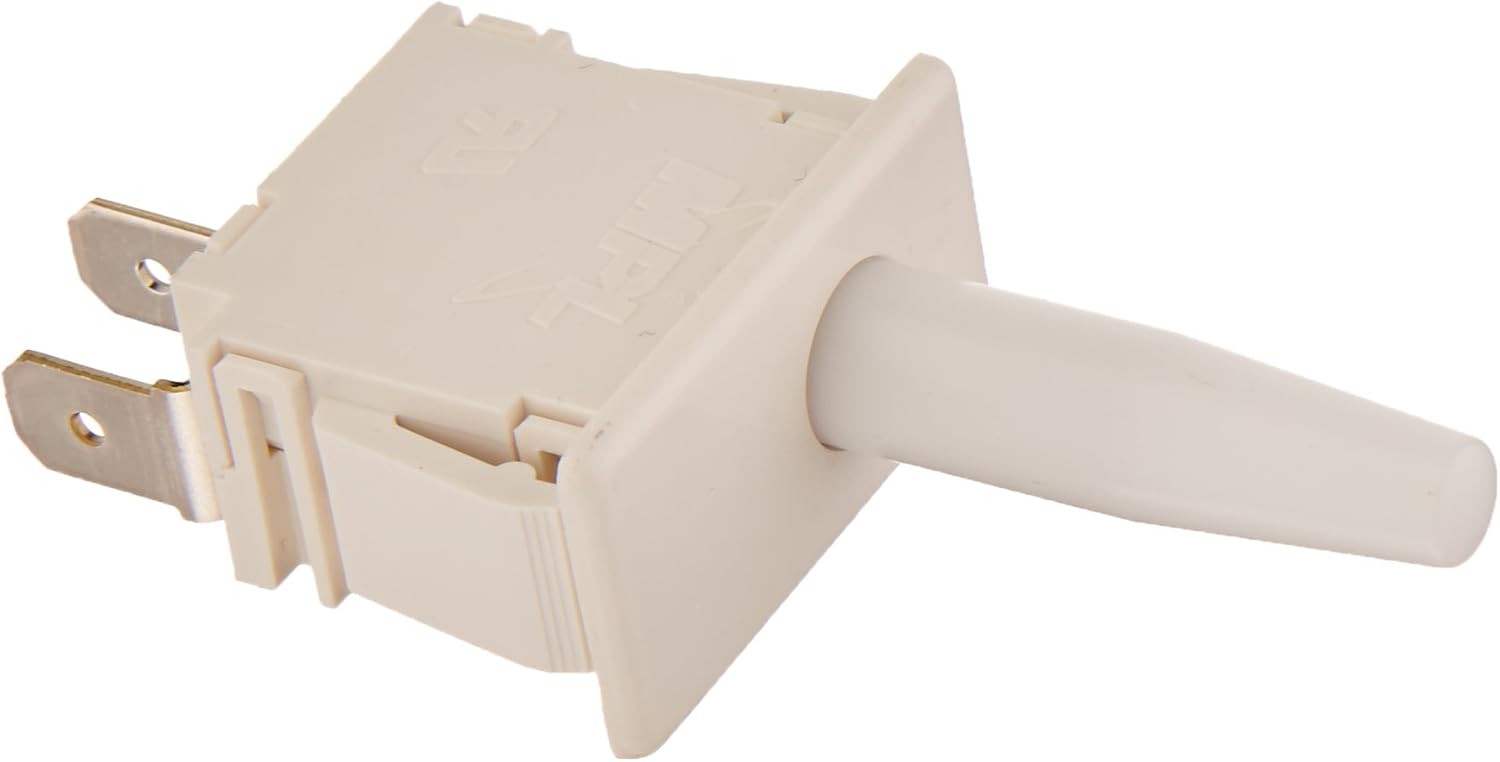

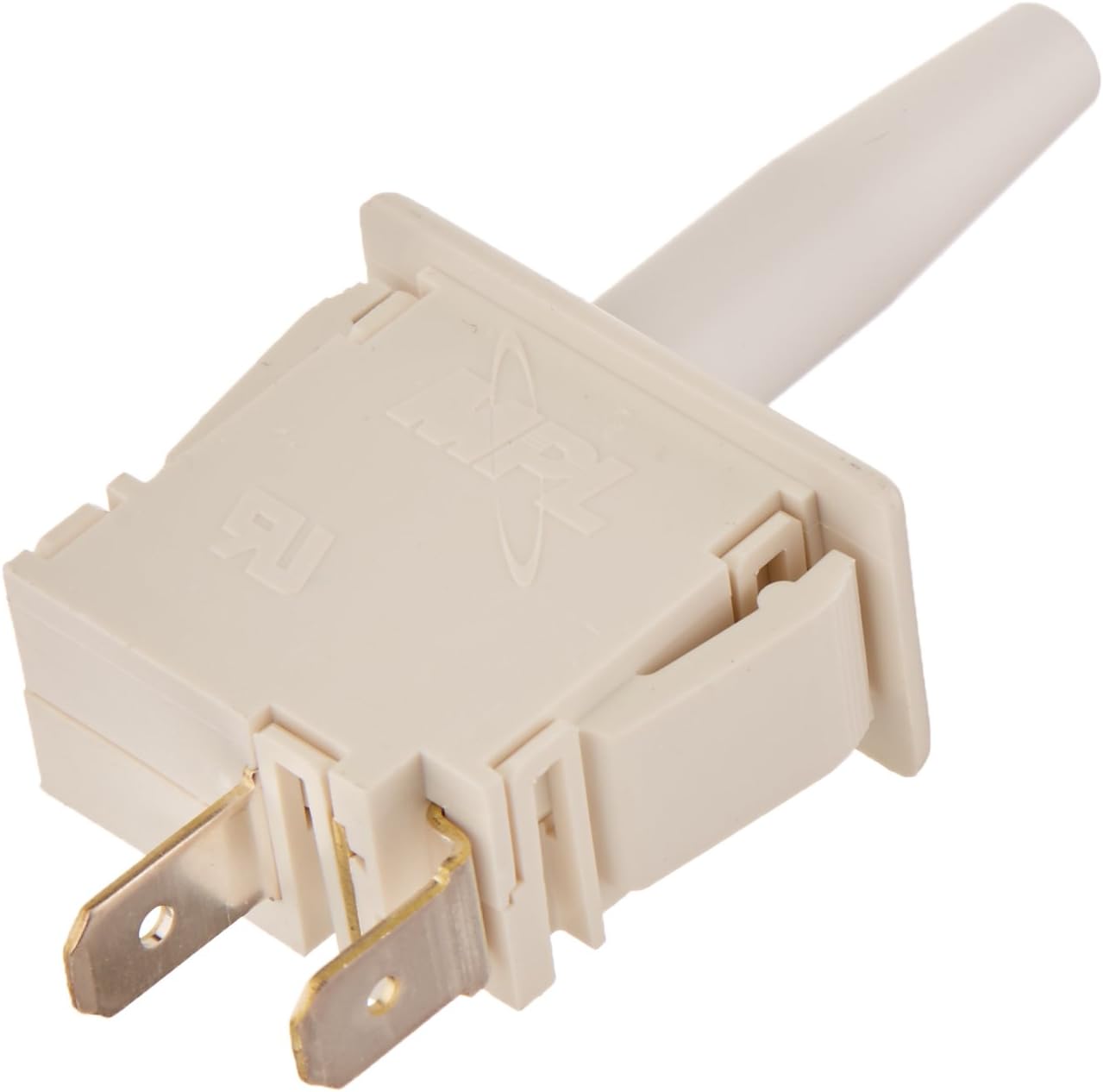

Rheem 42-22692-06 Door Switch 120/230V Push Button SPST

Product Description

The Rheem 42-22692-06 Door Switch is a robust and reliable solution optimized for HVAC systems, ensuring operational efficiency and safety. Crafted to control access and signal the operational status, this switch is integral for system monitoring.

• 120/230V voltage rating fits a variety of setup configurations.
• Push button actuation for easy operation.
• SPST, normally open contact configuration.

Product Highlights

Designed for durability, the Rheem door switch provides a seamless integration with a 1/4 inch quick connect, offering a straightforward installation process. It's used across various models, making it versatile for HVAC repairs and maintenance.

Product Information

Standard Information

• Voltage: 120 to 230VAC
• Current: 13.8A
• Type: SPST
• Contact Configuration: Normally Open (NO)

Technical Specifications

• Connection Type: 1/4 inch quick connects
• Actuator Type: Push Button
• Mounting Hole Dimensions: 17/32 inch width, 1-1/8 inch height
• Electrical Ratings: 14.0A at 120/230V
