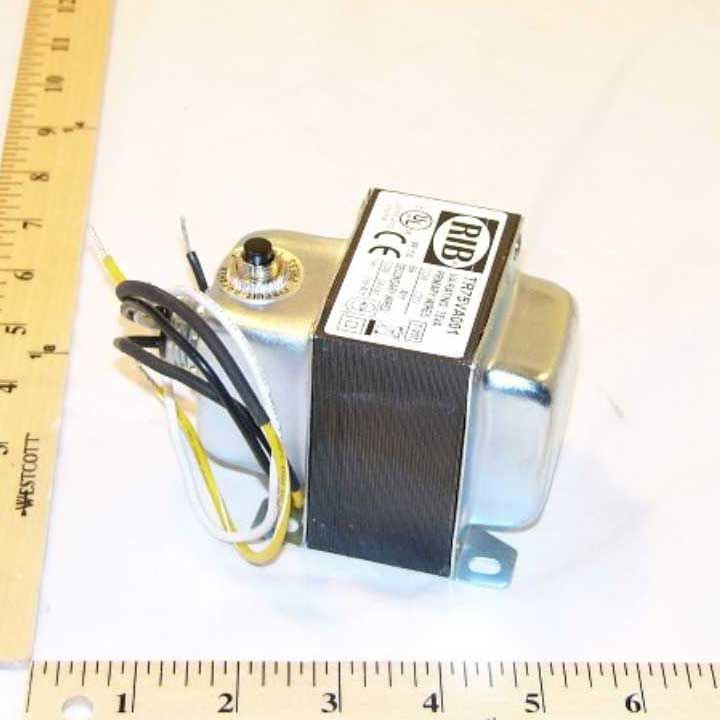

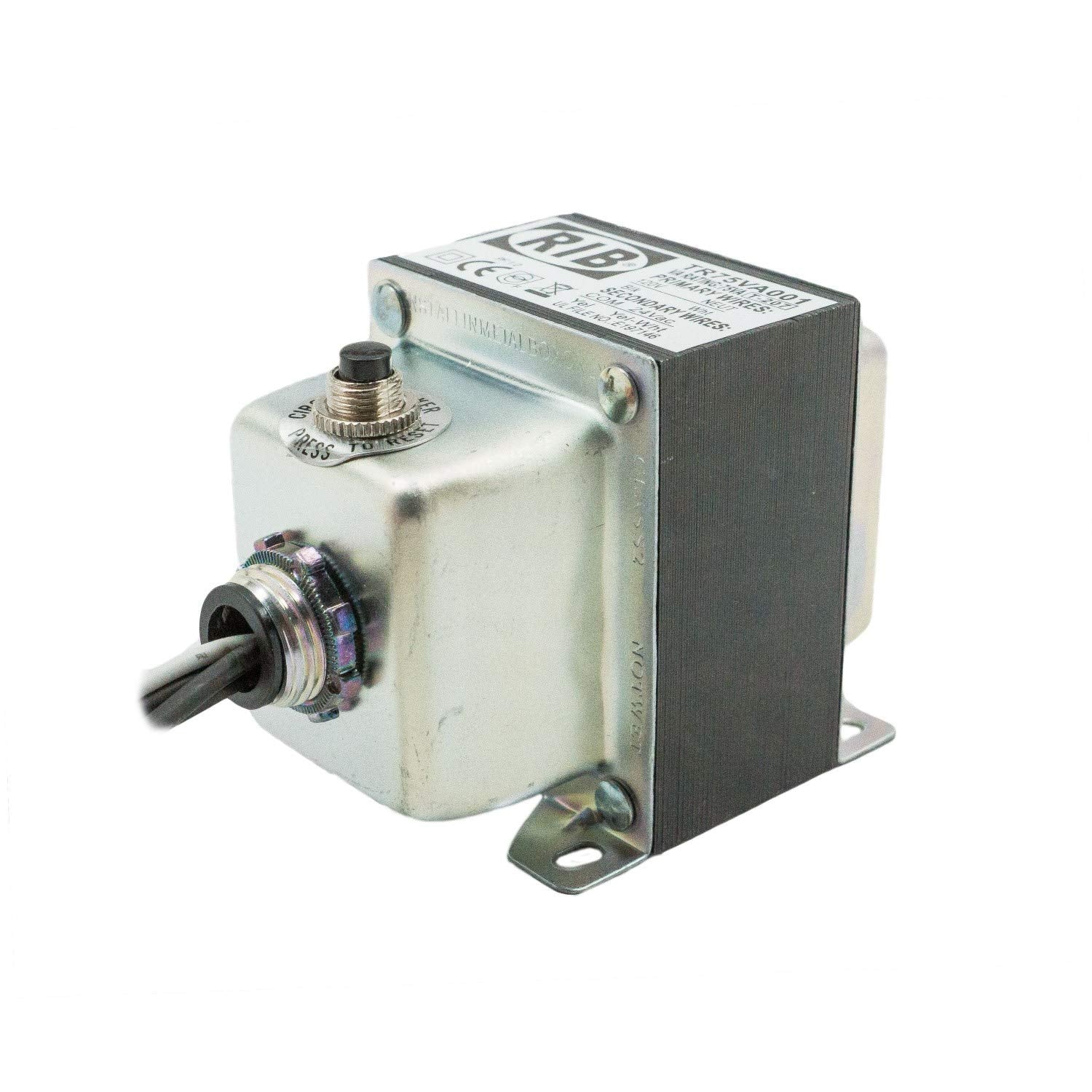

RIB TR75VA001 Transformer 75VA 120 to 24 Vac Circuit Breaker Foot and Single Threaded Hub Mount

Product Description

The RIB TR75VA001 Transformer is a versatile solution for converting 120V AC to 24V AC. With a 75VA power rating, it is reliable for various applications. This transformer features a circuit breaker for protection and can be mounted using a foot or single threaded hub.

• Class 2 Transformer
• 75VA Rating
• 120V to 24V AC Conversion

Product Highlights

This transformer is designed for industrial and scientific uses, ensuring efficient voltage conversion and protection with built-in circuit breakers.

Product Information

Standard Information

• Brand: RIB
• MPN: TR75VA001

Technical Specifications

• VA Rating: 75
• Input Voltage: 120V AC
• Output Voltage: 24V AC
• Mounting: Foot or 1/2 inch NPT Hub
• Primary Connection: Pigtails
• Secondary Connection: 8 Inch Leads
• Frequency: 50/60 Hz
• Enclosure: Open type
• Height: 3 inches
• Depth: 2.5 inches
• Width: 3.88 inches
• Standards: UL5085-2 or UL5085-3 (USA & Canada)
