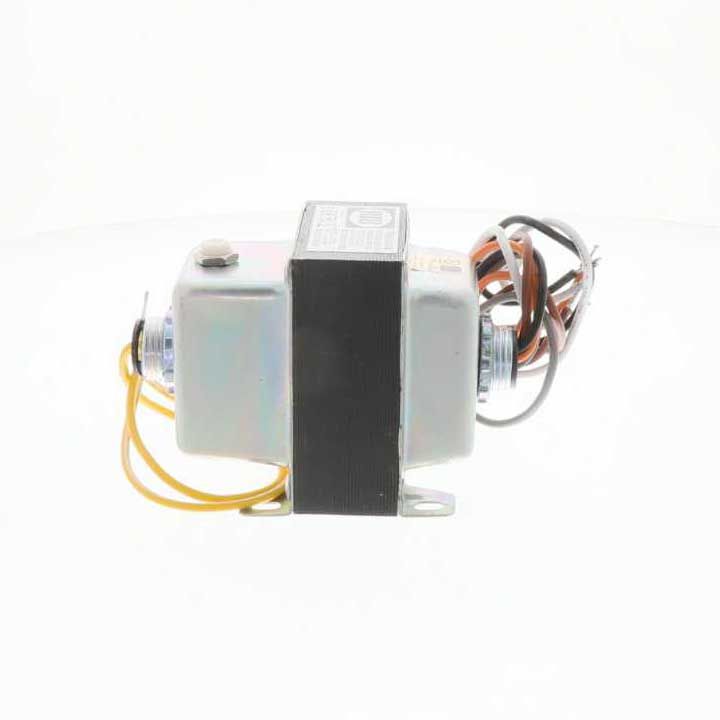

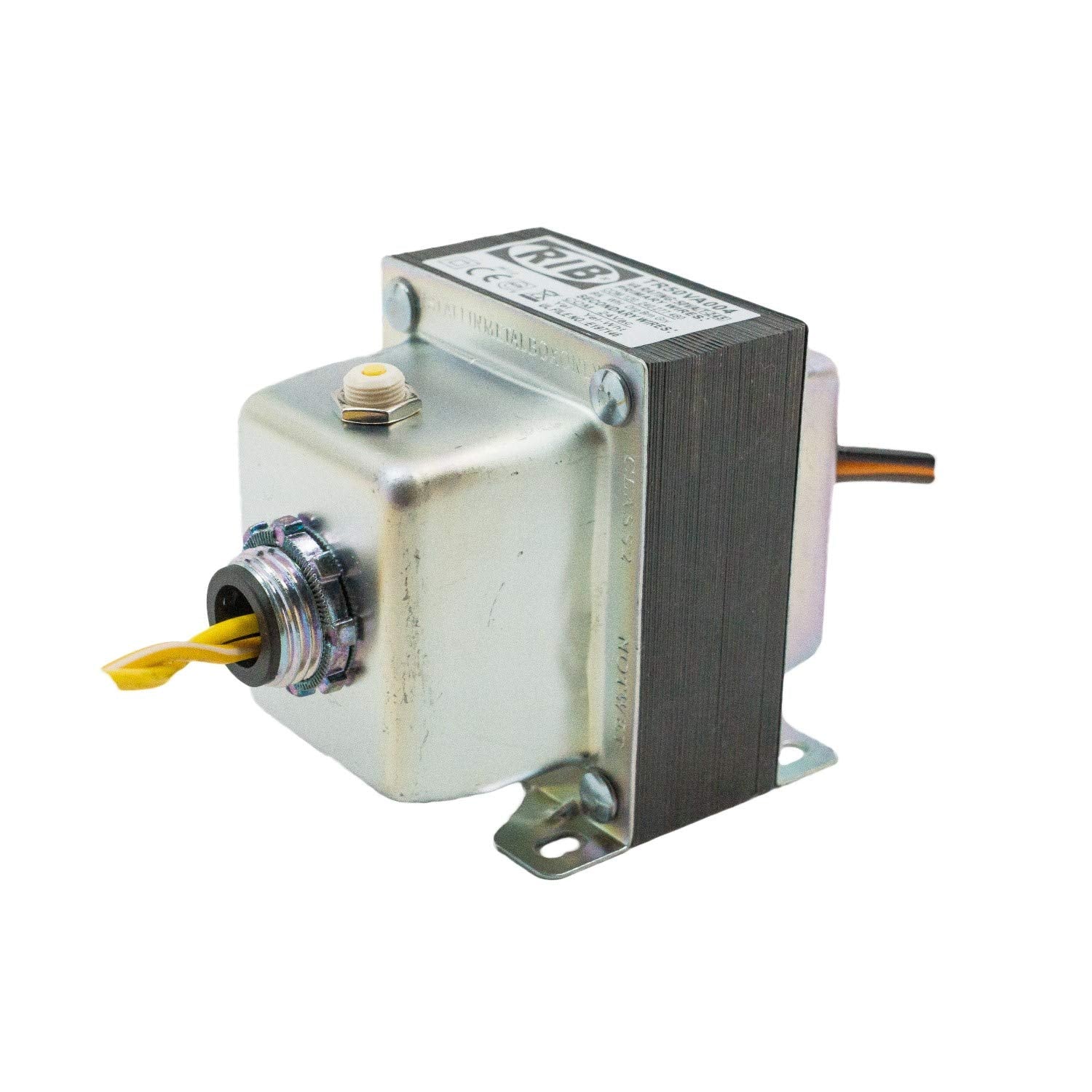

Functional Devices TR50VA004 Transformer 50VA 480/277/240/120 to 24 Vac Circuit Breaker Foot and Dual Threaded Hub Mount

Product Description

The Functional Devices TR50VA004 Transformer provides a reliable solution for converting voltages. With its primary voltage ratings of 480, 277, 240, and 120 volts AC, and a secondary voltage rating of 24 volts AC, it offers versatility for various electrical needs. This transformer features a power rating of 50 VA and is equipped with a circuit breaker for over-current protection.

• Primary voltage: 480/277/240/120 volts AC
• Secondary voltage: 24 volts AC
• Power rating: 50 VA

Product Highlights

This transformer supports foot and dual threaded hub mount for ease of installation. The primary connections utilize pigtail terminals, while the secondary connections feature 8-inch lead terminals.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: TR50VA004

Technical Specifications

• Primary Voltage: 480/277/240/120 volts AC
• Secondary Voltage: 24 volts AC
• Power Rating: 50 VA
• Frequency: 50/60 Hz
• Mounting: Foot and dual threaded hub
• Dimensions: 3.475 inches x 2.513 inches x 3.014 inches
• Wire Length: 9.5 inches with a strip length of 0.5 inch
• MTBF: 100000 hours at 77 degrees Fahrenheit
