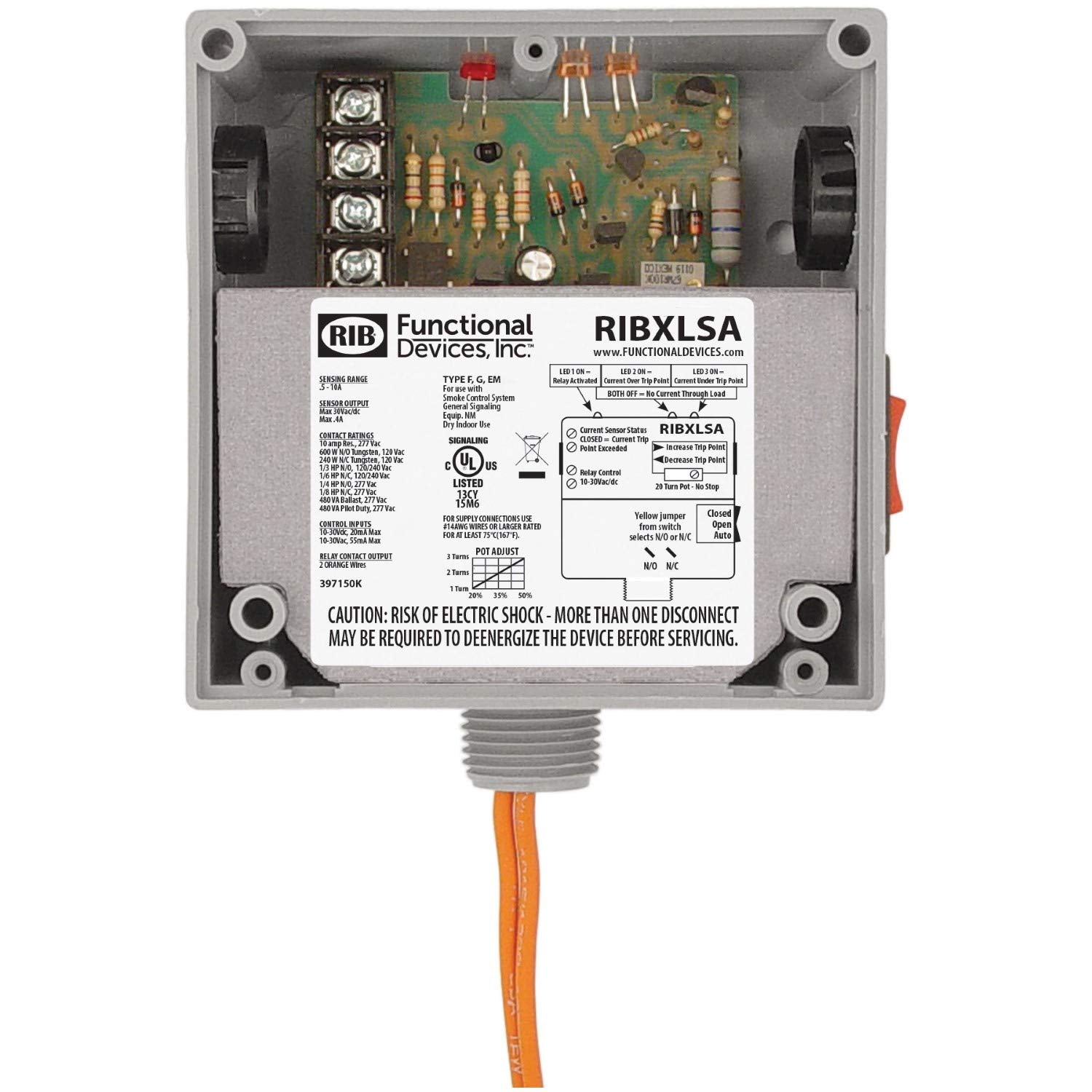

Functional Devices RIBXLSA Current Switch and Relay Combination 10A SPST + Override 10-30 v Coil Adjustable 0.50-10A

Product Description

The Functional Devices RIBXLSA is a high-performance current switch and relay combination designed for reliable electrical circuit management. This device, suitable for a range of industrial applications, operates with a SPST configuration and an adjustable current range from 0.50 to 10 amps. It comes housed in a durable NEMA 1 enclosure, ensuring longevity in various working conditions.

• Adjustable sensitivity for precise control.
• Integrated override switch enhances usability.
• Equipped with a red LED for clear, at-a-glance relay status indication.

Product Highlights

This robust tool is engineered to optimize electrical systems efficiency, featuring a responsive design with a quick operate time of only 20 milliseconds, and versatile voltage compatibility from 10 to 30 VAC/DC. It's certified with a plethora of accreditations including UL listed, UL916, UL864, RoHS, and more, guaranteeing compliance and safety.

Product Information

Standard Information

• Operating Temperature: Minus 30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95 percent non-condensing

Technical Specifications

• Relay Status: Red LED on indicates activation
• Approvals: UL Listed, CE, RoHS
• Sensor Output: Solid State Contact 30 VAC/DC, 0.4 Amp Rise 2024-07-06TT05:05:56
