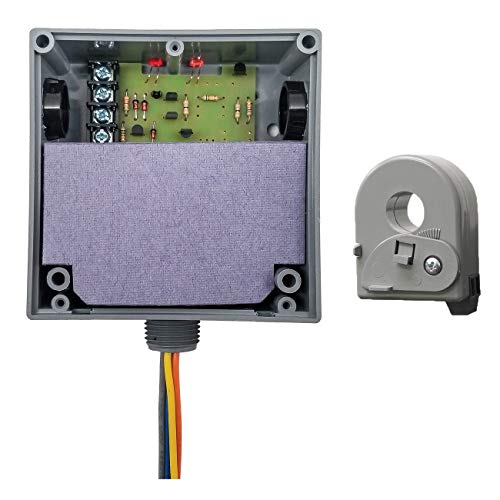

Functional Devices RIBXLCRF Current Switch and Relay Combination 10 Amp SPDT Relay 10-30Vac/dc Coil Remote Solid Core Fixed 1.25-150 Amp NEMA 1 Housing

Product Description

The Functional Devices RIBXLCRF Current Switch and Relay Combination is a versatile solution for electrical professionals. It features a 10 Amp single pole double throw (SPDT) relay and a 10-30V AC/DC coil. Designed with a remote solid core and fixed for wide-ranging applications, it supports currents from 1.25 to 150 Amps. Encased in a NEMA 1 housing, this product ensures reliable performance in various environments.

• 10 Amp SPDT relay
• 10-30V AC/DC coil
• 1.25-150 Amp current support

Product Highlights

This current switch and relay combination offers robust functionality for diverse electrical projects. It is suitable for controlling high-current circuits and monitoring current flow efficiently.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIBXLCRF
• Type: Current Switch and Relay Combination

Technical Specifications

• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95 percent (non-condensing)
• Operate Time: 20 milliseconds
• Relay Status: Red LED On = Activated
• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Sensor Output: Solid State Contact 30 Vac/dc, 0.4 Amp
