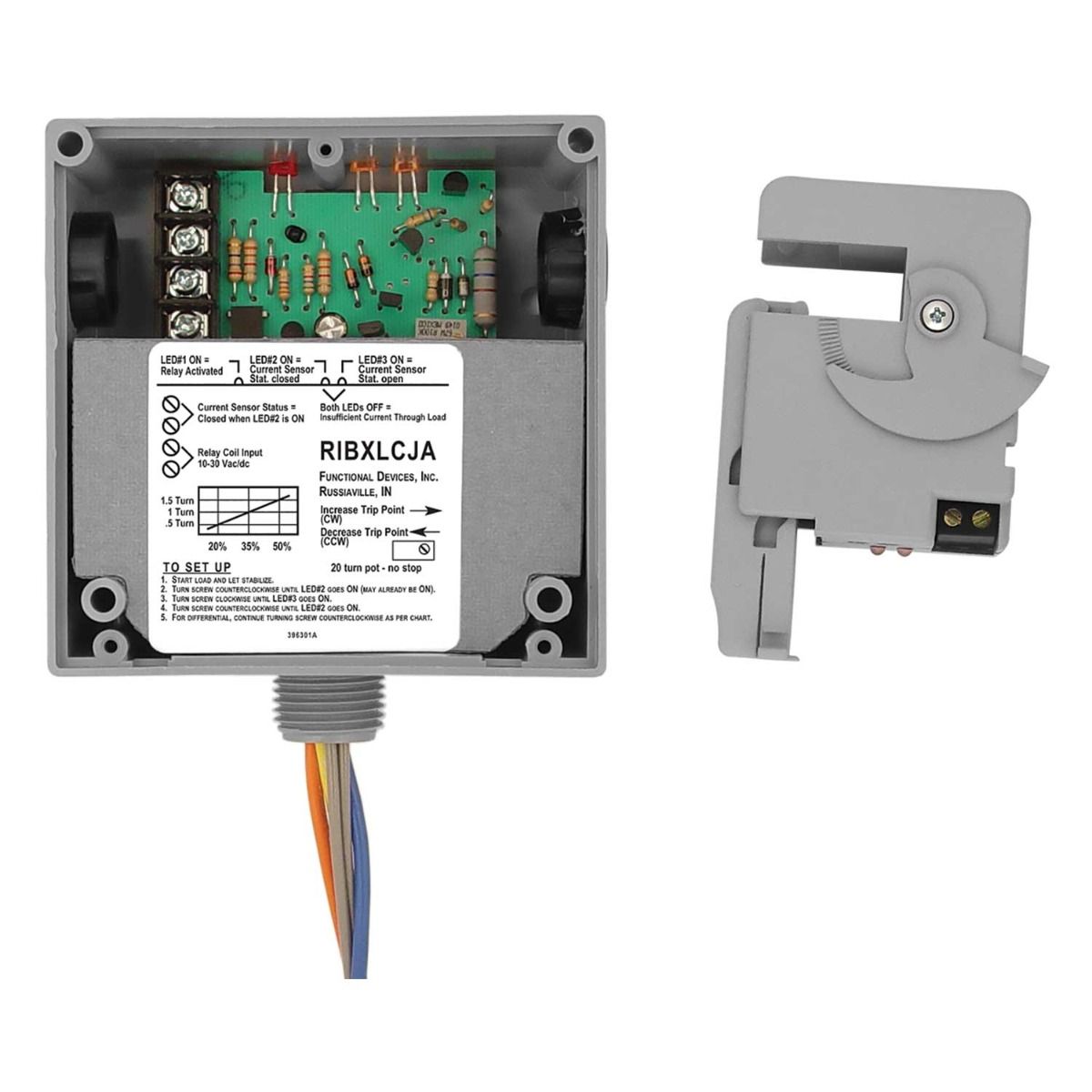

Functional Devices RIBXLCJA Adjustable Current Switch And Relay 10A 30 VAC/DC

Product Description

The Functional Devices RIBXLCJA is an adjustable current switch and relay designed for reliable performance. It features a split-core design and operates at a maximum load of ten Amps. The relay can function with a coil voltage of thirty VAC or DC, making it versatile for various applications. The sensing range is adjustable from three to one hundred fifty Amps, accommodating different needs.

• Split-core design for easy installation.
• Adjustable current sensing from three to one hundred fifty Amps.
• Solid-state contact output at thirty VAC/DC.

Product Highlights

The RIBXLCJA is suitable for use in heating, ventilation, and air conditioning systems where precise control is required. The solid-state output ensures durability and reliability in various scenarios.

Product Information

Standard Information

• Brand: Functional Devices
• Part Number: RIBXLCJA

Technical Specifications

• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95 percent (non-condensing)
• Operate Time: 20 ms
• Relay Status Indicator: Red LED On = Activated
• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Sensor Output: Solid State Contact 30 VAC/DC, 0.4 Amp
• Item Weight: 0.913 lbs
