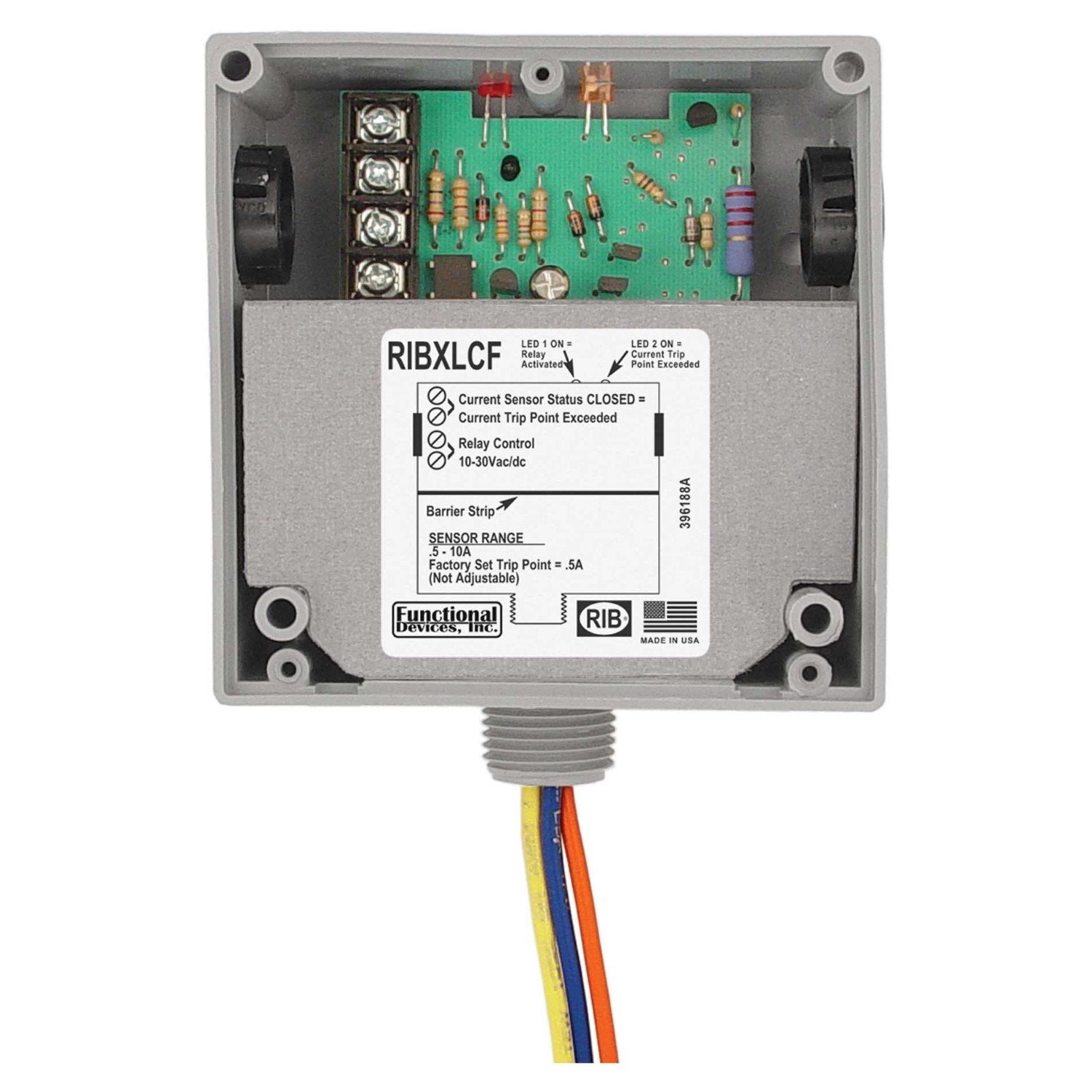

Functional Devices RIBXLCF Current Switch SPDT Relay 10-30VAC/DC Fixed

Product Description

The Functional Devices RIBXLCF is a robust current switch and relay combination featuring a SPDT relay with a 10 to 30VAC/DC coil. The fixed current switch ranges from 0.5 to 10 amps, enclosed in a NEMA 1 rated housing, ideal for industrial applications.

• Integrated SPDT relay for versatile switching applications.
• Compact dimensions for easy installation in confined spaces.
• Durable NEMA 1 rated housing suitable for various environments.

Product Highlights

This device offers operational reliability with an operating temperature range from -30 to 140 degrees Fahrenheit and a humidity range from 5 to 95 percent non-condensing. It's equipped with a red LED to indicate relay status and supports solid state contact outputs up to 30 VAC/DC.

Product Information

Standard Information

• Operate Time: 20ms
• Approvals: UL Listed, UL916, UL864

Technical Specifications

• Model: RIBXLCF
• Switching Capacity: 0.5-10 Amp
• Coil Voltage: 10-30VAC/DC
• Housing: NEMA 1
