Functional Devices RIBXLCEA Current Switch and Relay Combination 5A SPDT Relay 10-30v Coil Adjustable

Product Description

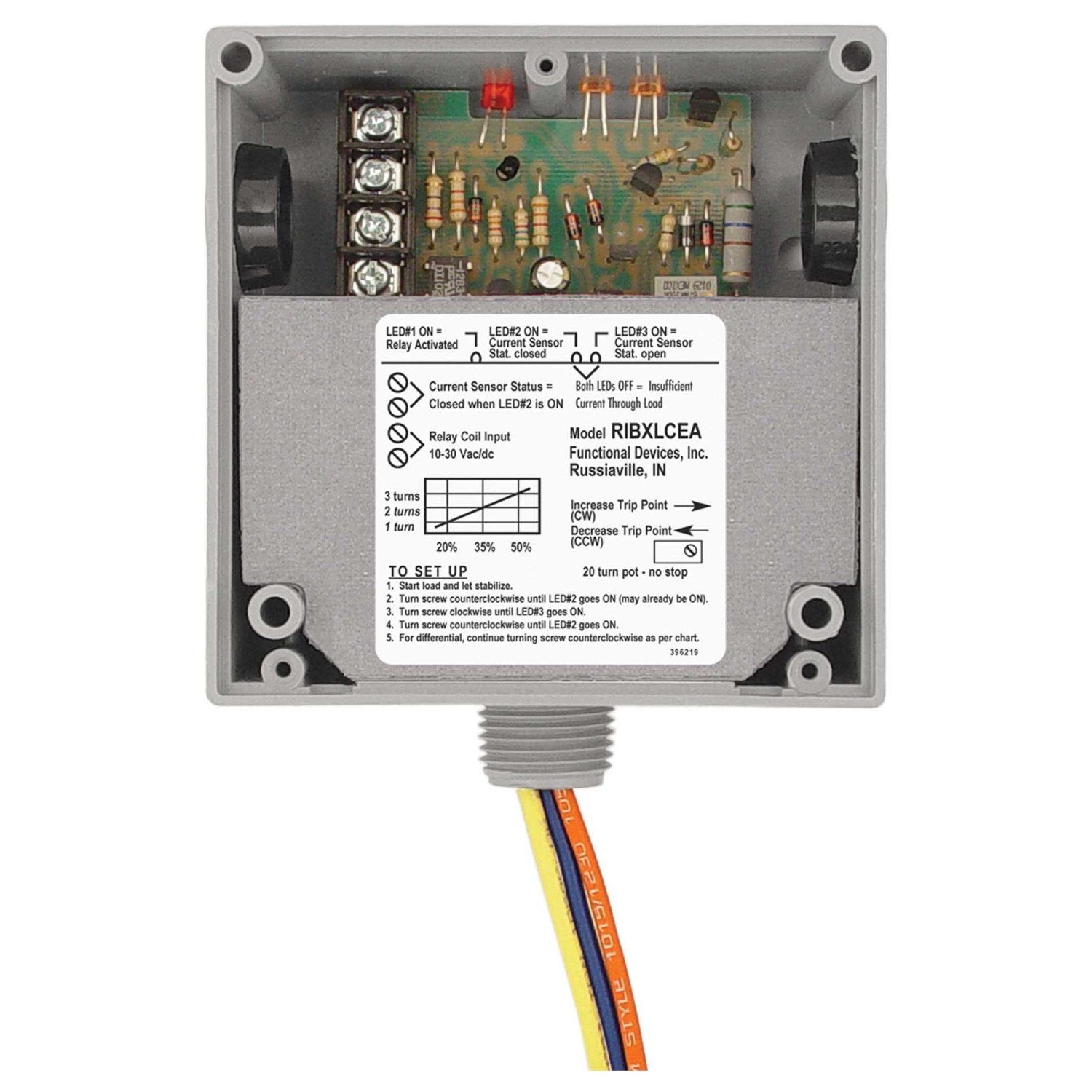

Experience reliable and efficient control with the Functional Devices RIBXLCEA, an enclosed 5 amp relay and current switch combination. Designed and manufactured in the United States, this device offers adjustability from 0.125 to 5 amps, encapsulated in a solid NEMA 1 housing.

• Adjustable current range from 0.125 to 5 amps for versatile application use.
• Encased in a durable NEMA 1 housing, ensuring protective confinement against environmental factors.
• Sold individually, making it a practical choice for specific project requirements.

Product Highlights

The RIBXLCEA boasts a swift operate time of 20 milliseconds and features a visual red LED indicator for relay status, aiding in immediate diagnostics and status checks.

Product Information

Standard Information

• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95% (noncondensing)

Technical Specifications

• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Sensor Output: Solid State Contact 30 Vac/dc, 0.4 Amp
• Package Dimensions: 2.4 inches Length x 6.9 inches Height x 4.6 inches Width
• Weight: 0.84 pounds
