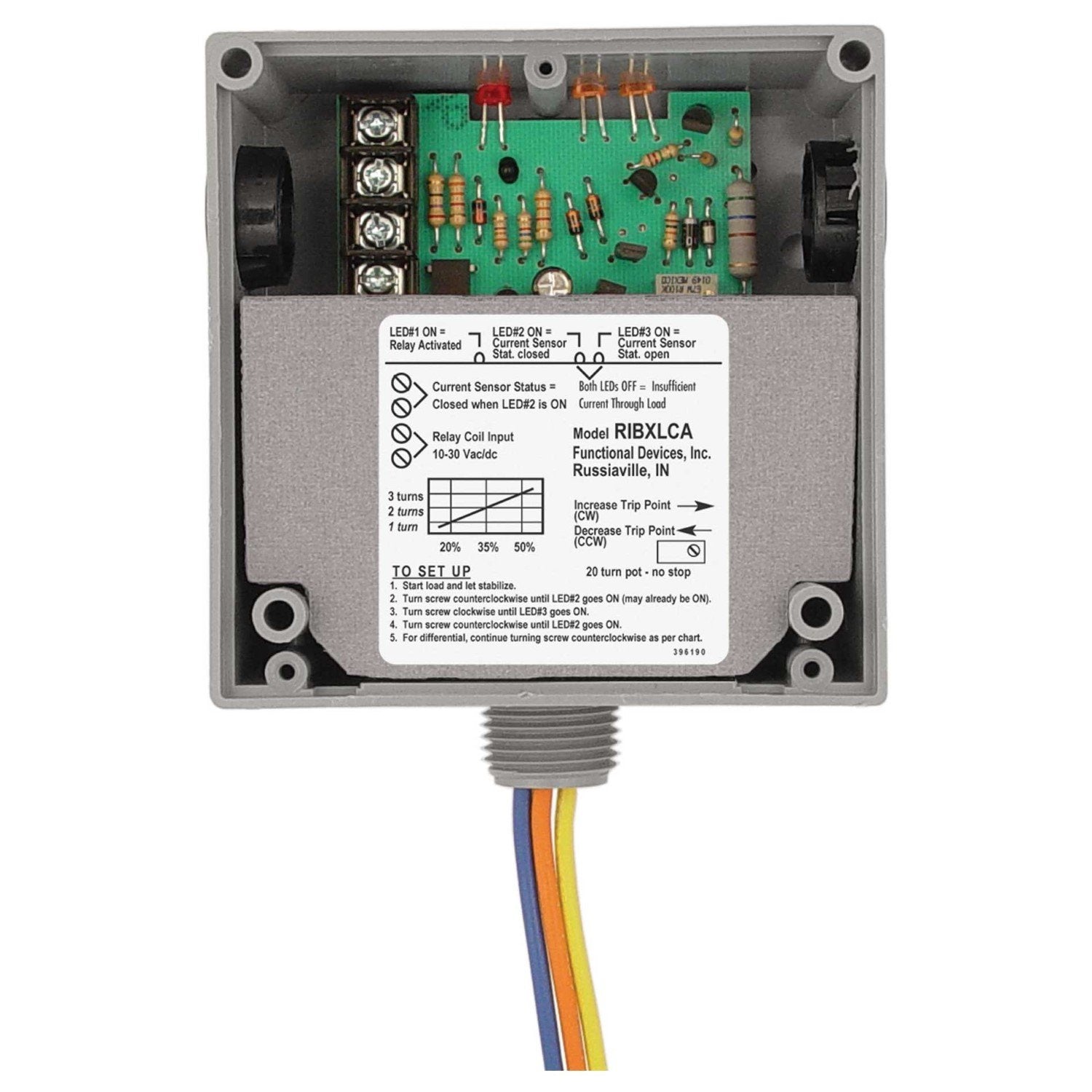

RIB RIBXLCA Current Switch and Relay Combination 10A SPDT Relay with Adjustable 10-30V Coil

Product Description

The RIB RIBXLCA is a versatile current switch and relay combination, designed for industrial control and monitoring applications. It features an adjustable range of 0.5 to 10 amps and operates with a 10 to 30V AC/DC coil, housed in a NEMA 1 enclosure for indoor dry environments only.

• Adjustable current setting from 0.5 to 10 amps for precise control.
• Built-in SPDT relay for dependable switching action.
• Equipped with LED status indicator for real-time operational feedback.

Product Highlights

This unit is ideal for electrical panels, HVAC systems, and industrial automation, providing reliable sensing and relay operations.

Product Information

Standard Information

• Adjustment Ability: 0.5 to 10 Amps.
• Relay Type: SPDT.

Technical Specifications

• Coil Voltage: 10-30V AC/DC.
• Temperature Range: -30 to 140 degrees Fahrenheit.
• Humidity Tolerance: 5% to 95% non-condensing.
• Response Time: 20 milliseconds.
• Operational Indication: Red LED.
• Compliance: UL Listed, UL916, UL864, CE, RoHS.
