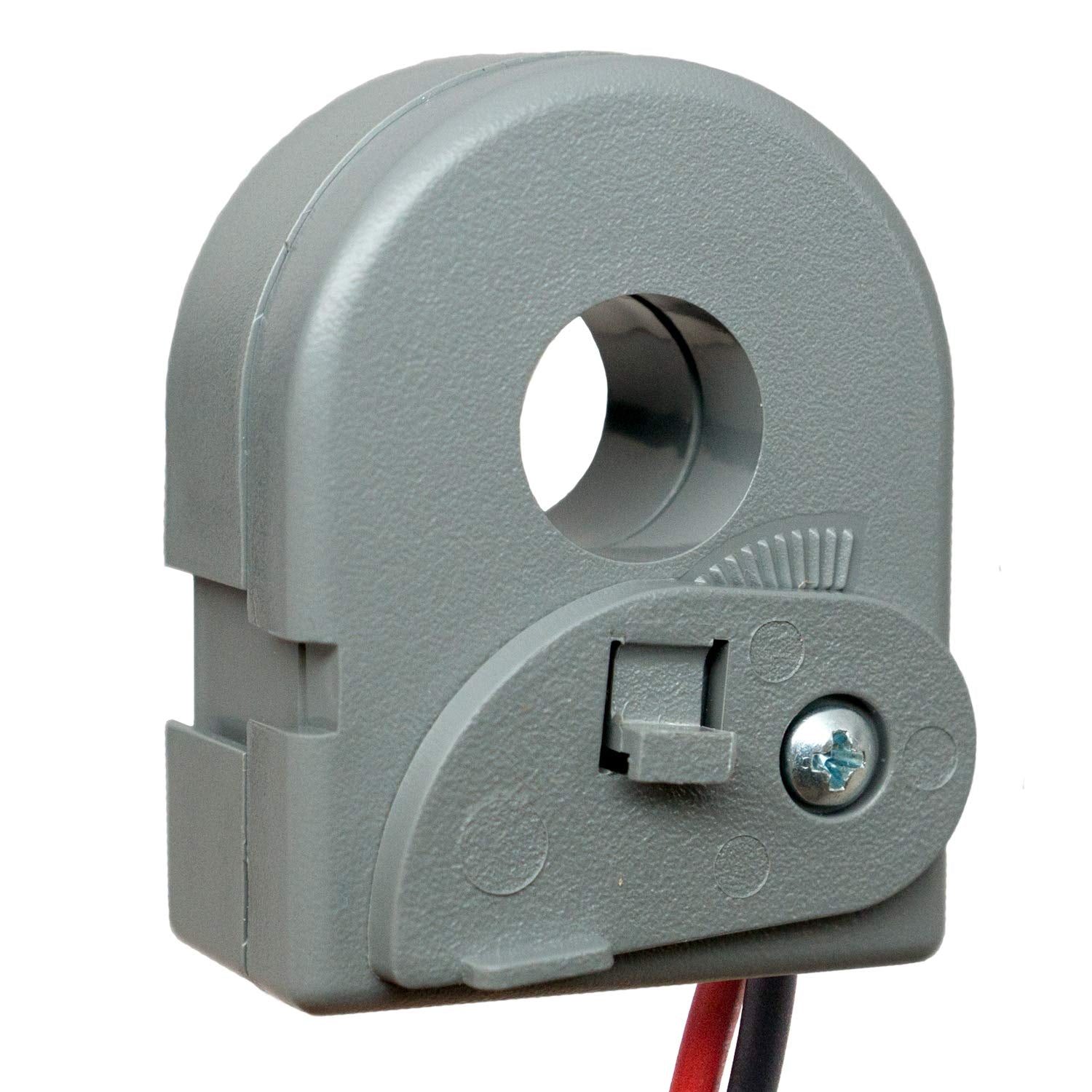

Functional Devices RIBXK420-20 Solid Core Current Transducer 4-20 mA

Product Description

The RIBXK420-20 from Functional Devices is a solid core current transducer designed for industrial applications. This device offers a 4-20 mA analog output, suitable for measuring currents from 0 to 20 Amps. It includes wire leads for easy integration into existing systems.

• Accurate current measurement within a 0-20 Amp range
• 4-20 mA analog output for reliable data transmission
• Solid core design with wire leads for straightforward installation

Product Highlights

Equipped with a solid core, the RIBXK420-20 ensures precise current monitoring. Its robust design includes a flame-retardant housing and operates within a temperature range of -30 to 140 degrees Fahrenheit. The sensor features a high accuracy rating of 98.3% full scale.

Product Information

Standard Information

• Category: Current Sensors
• Brand: Functional Devices

Technical Specifications

• Sensor Type: Solid Core
• Output Type: Analog 4-20 mA
• Measurement Range: 0-20 Amp
• Max Output Current: 30 mA
• Max Sense Voltage: 600 VAC
• Approvals: UL Listed, UL916, UL864, C-UL, CE, RoHS
