Description

Product Description

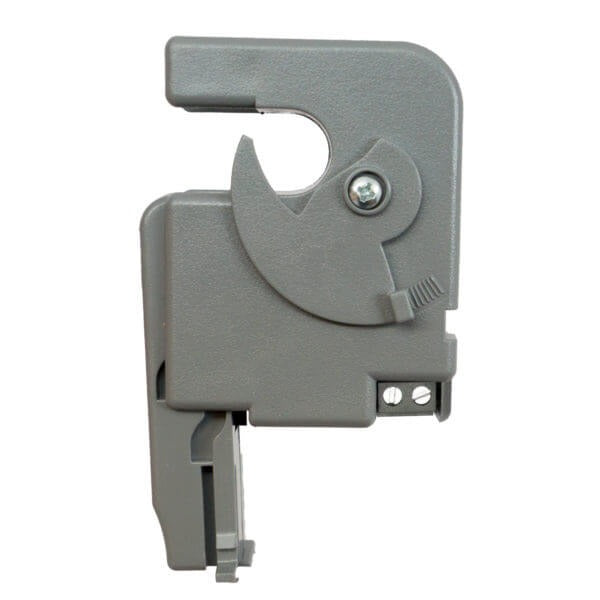

Functional Devices RIBXGTV5 is an enclosed split-core AC current transducer that provides a 0-5 V DC proportional output. The unit offers selectable multi-range sensing for 0-20 A, 50 A, and 100 A and installs around conductors via a 0.5 in split window with a removable mounting tab and locking wire clamp. Typical applications include power monitoring, load sensing, and protection systems.

  • Selectable multi-range measurement: 0-20 A, 50 A, 100 A with 0-5 V DC output
  • Enclosed split-core design with 0.5 in window, removable mounting tab, and wire clamp for clamp-around installation
  • Accuracy 98.3% of full scale; operating temperature -30 to 140 F; humidity 5 to 95% non-condensing; max sense voltage 600 VAC; terminal connections

Product Highlights

Enclosed split-core AC transducer with selectable 0-20/50/100 A ranges and 0-5 V DC proportional output for power monitoring and protection.

Product Information

Standard Information

  • Brand: FUNCTIONAL DEVICES
  • Manufacturer Part Number: RIBXGTV5
Technical Specifications
Brand
Functional Devices
MPN
RIBXGTV5
Product Type
AC current transducer
Construction
Enclosed, split-core
Mounting
Split-core clamp-around; removable mounting tab; wire clamp locks against monitored conductor
Output
0-5 V DC (terminals)
Current Range
Selectable 0-20 A, 50 A, 100 A
Window Size
0.5 in
Accuracy
98.3% of full scale
Operating Temperature
-30 to 140 F
Humidity Range
5 to 95% (non-condensing)
Max Sense Voltage
600 VAC
Connections
Terminal connections
Approvals/Certifications
UL Listed (UL916, UL864), California State Fire Marshal, C-UL, CE, RoHS
Typical Applications
Power monitoring; load sensing; protection systems
