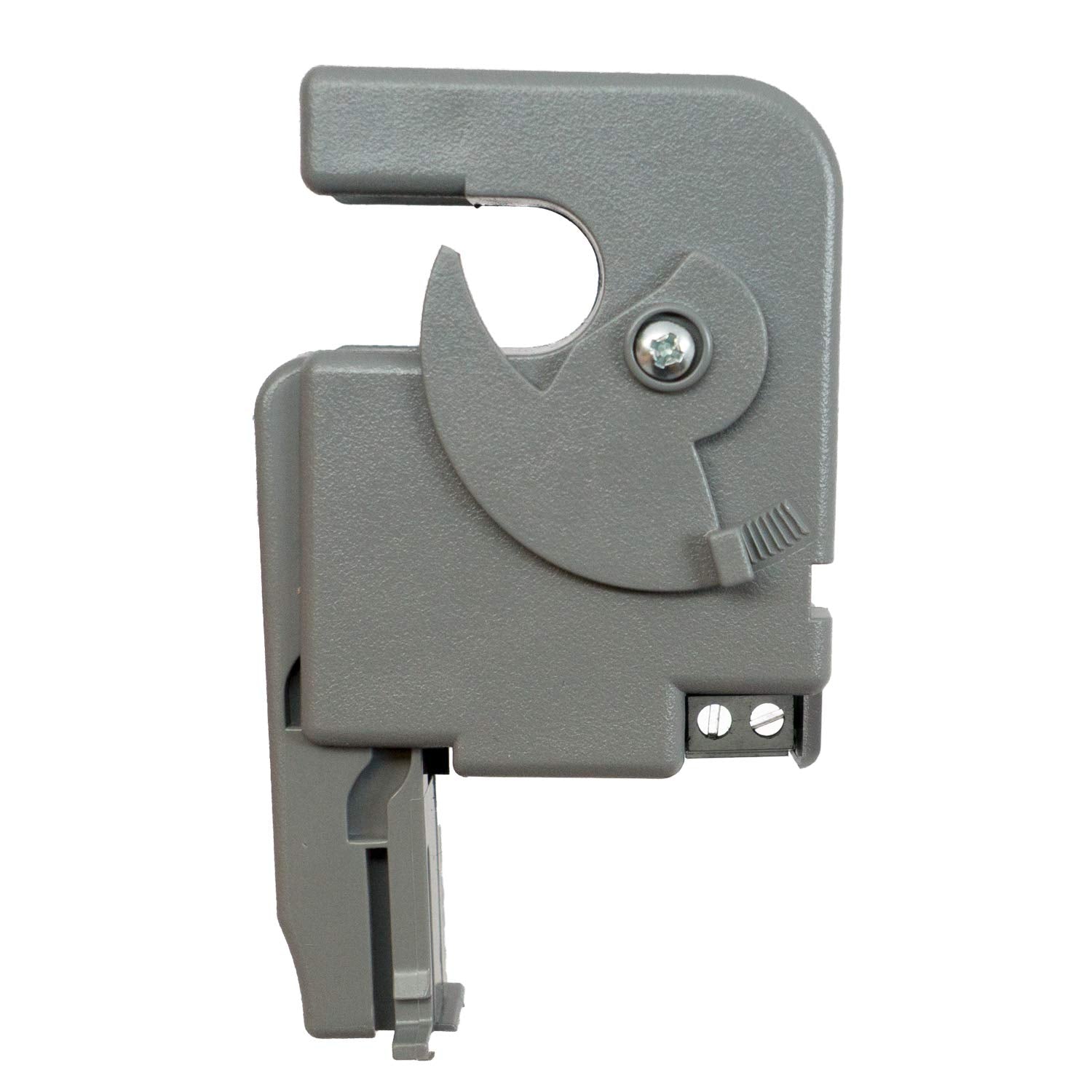

Functional Devices RIBXGHTF Current Switch Split Core Fixed 0.50-150 Amp 120 Vac Terminal

Product Description

The Functional Devices RIBXGHTF is a split-core current switch designed for precise monitoring and control of electrical systems with currents ranging from 0.50 to 150 Amps at 120 Volts. Key features of this device include its split-core design for easy installation, high sensitivity, and reliability in industrial applications.

• Automated operation with max switching current of 0.5 Amps.
• Fixed trip point calibrated at 0.50 Amps for consistent performance.
• Robust terminal strip for secure electrical connections.

Product Highlights

This switch is ideally suited for use in monitoring power consumption, load balancing, and detecting faults in electrical systems.

Product Information

Technical Specifications

• Brand: Functional Devices
• MPN: RIBXGHTF
• Voltage: 120 Volts AC
• Current Range: 0.50 to 150 Amps
• Maximum Switching Current: 0.5 Amps
• Operation Mode: Automatic
• Contact Rating: 1.00A @ 120V AC
• Connection Type: Terminal Strip
• Installation: Mounting Tab or Wire Clamp
• Certifications: UL Listed, CE, RoHS
