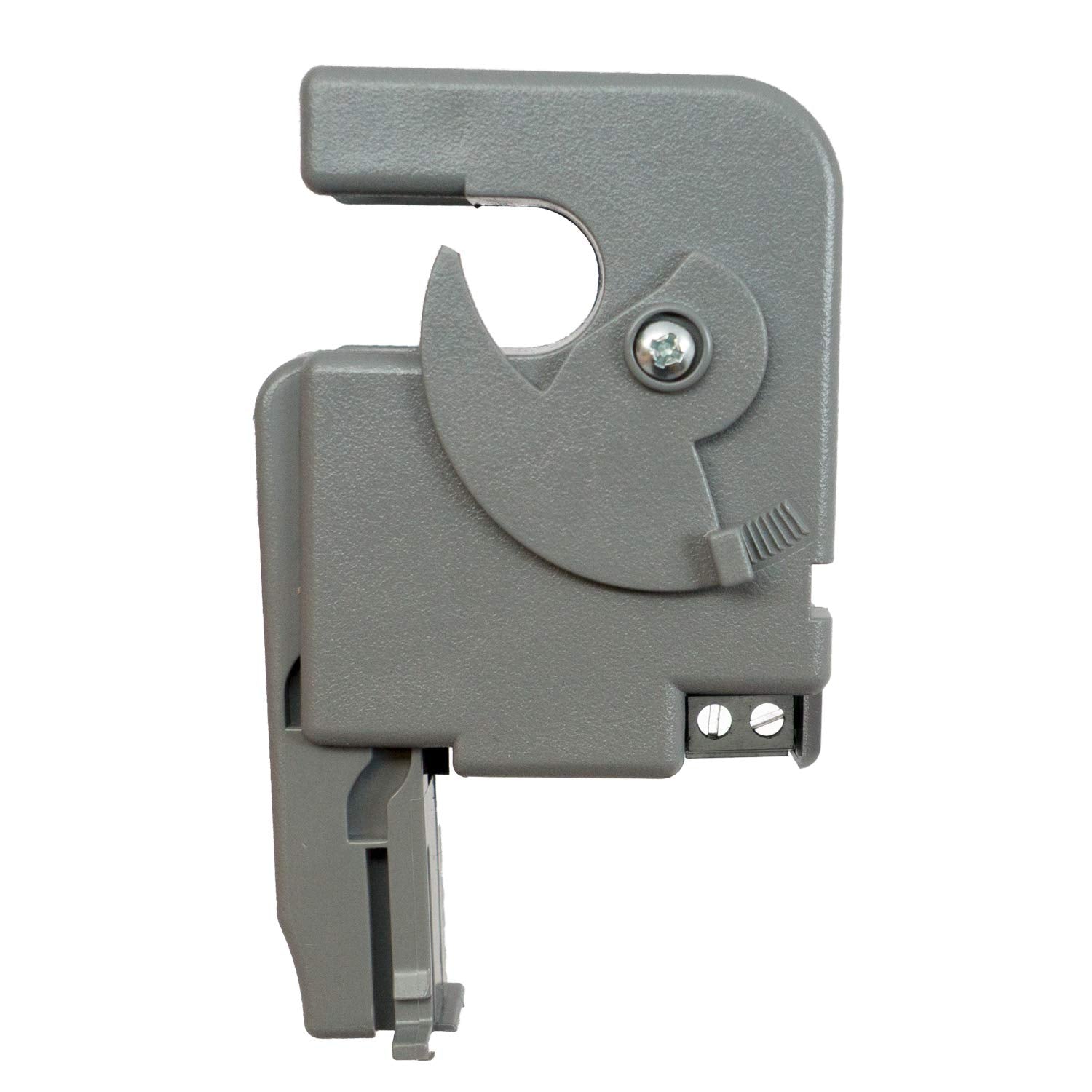

Functional Devices RIBXGHTA Current Switch Adjustable 0.75-150 Amp 120 Vac Terminal

Product Description

The RIBXGHTA from Functional Devices is a versatile and adjustable split core current switch designed to accurately measure AC current in a range of industrial and commercial settings. Detecting currents from 0.75 to 150 amps at 120 Vac, this UL-listed unit meets stringent compliance with CE and RoHS standards.

• Adjustable sensitivity enhances application flexibility.
• Easy installation with multiple mounting options.
• Robust split-core design for non-invasive readings.

Product Highlights

Equipped with a robust enclosure, it offers a reliable performance in harsh environments.

Product Information

Standard Information

• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95% non-condensing

Technical Specifications

• Maximum Sense Voltage: 600 Vac
• Approvals: UL Listed, UL916, C-UL, CE, RoHS
• Mounting/Installation: Various options including mounting tab and adjustable wire clamp
