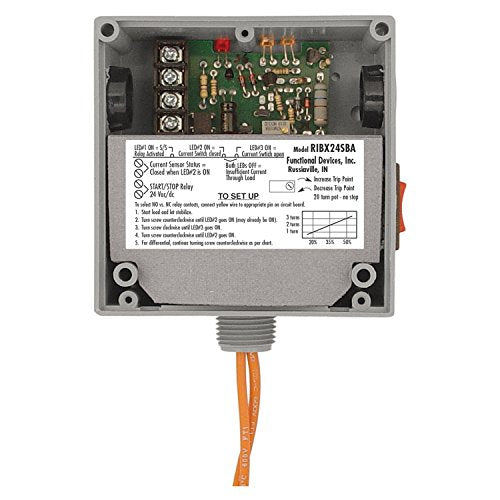

Functional Devices RIBX24SBA Current Sensor, Relay, and Override with Adjustable Sensing

Product Description

The Functional Devices RIBX24SBA provides a sophisticated current sensing solution incorporating a relay with manual override capabilities. Expertly designed for industrial environments, this device operates prominently with a 24 Vac/dc coil, suitable for applications ranging from motor control to industrial automation.

• Manual override feature included.
• Adjustable sensing ranges from 0.5 to 20 amps.
• Durable NEMA 1 housing.

Product Highlights

Rated for 20 Amps, this current switch simplifies the monitoring and switching of electric flows, facilitating improved precision and safety in complex systems. Its compact design makes installation straightforward, even in confined spaces. The device also operates effectively across a significant temperature range from minus 30 to 140 degrees Fahrenheit, ensuring reliability under varying conditions.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIBX24SBA

Technical Specifications

• Type: Current sensor and relay
• Operational Voltage: 24 Vac/dc
• Operational Temperature Range: minus 30 to 140 degrees Fahrenheit
• Current Sensing Range: 0.5 to 20 amps
• Wire Rating: up to 600 volts
