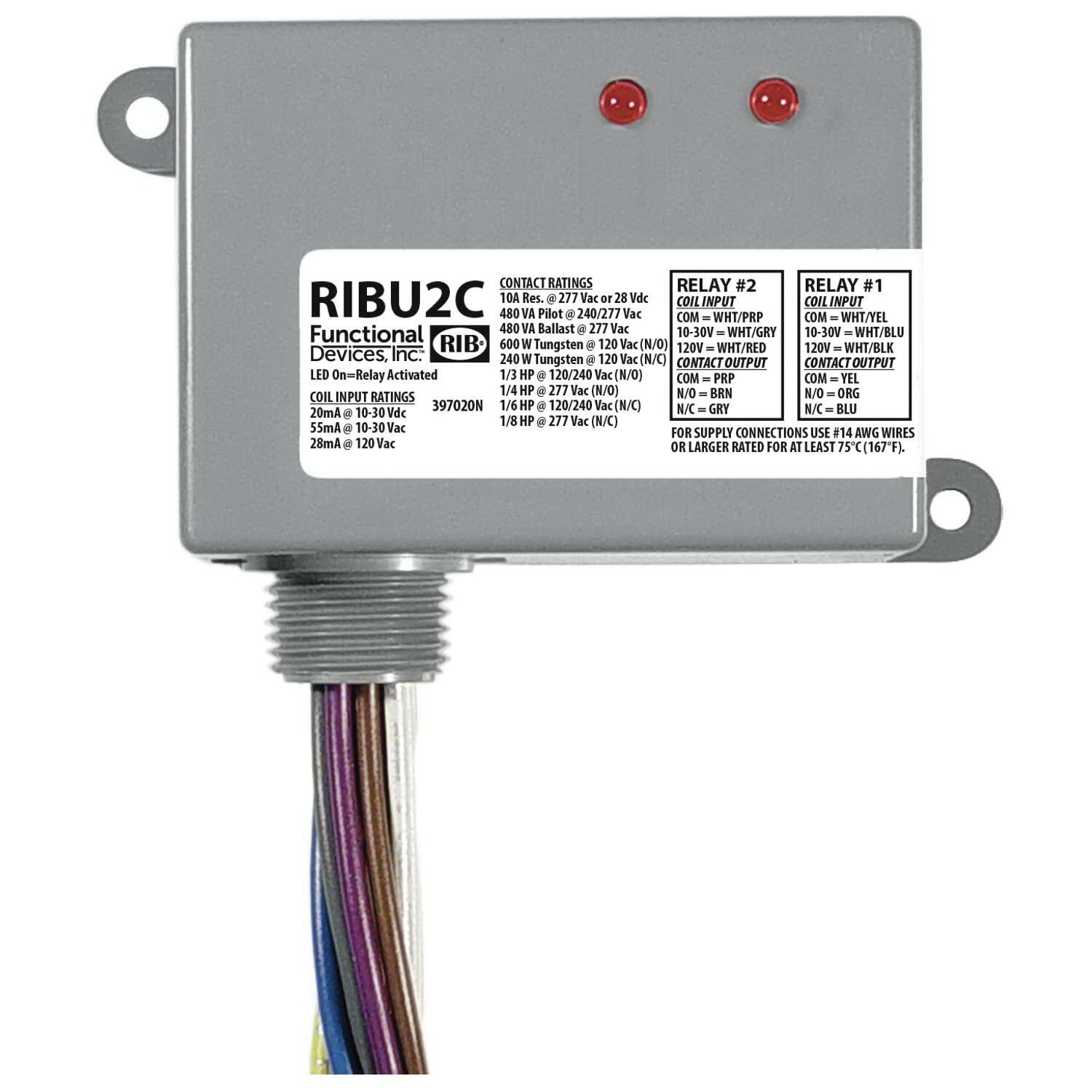

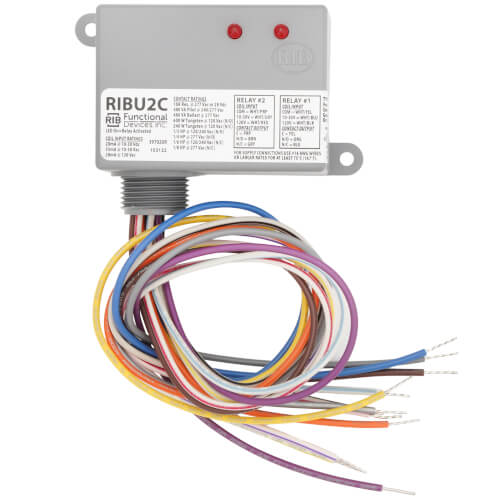

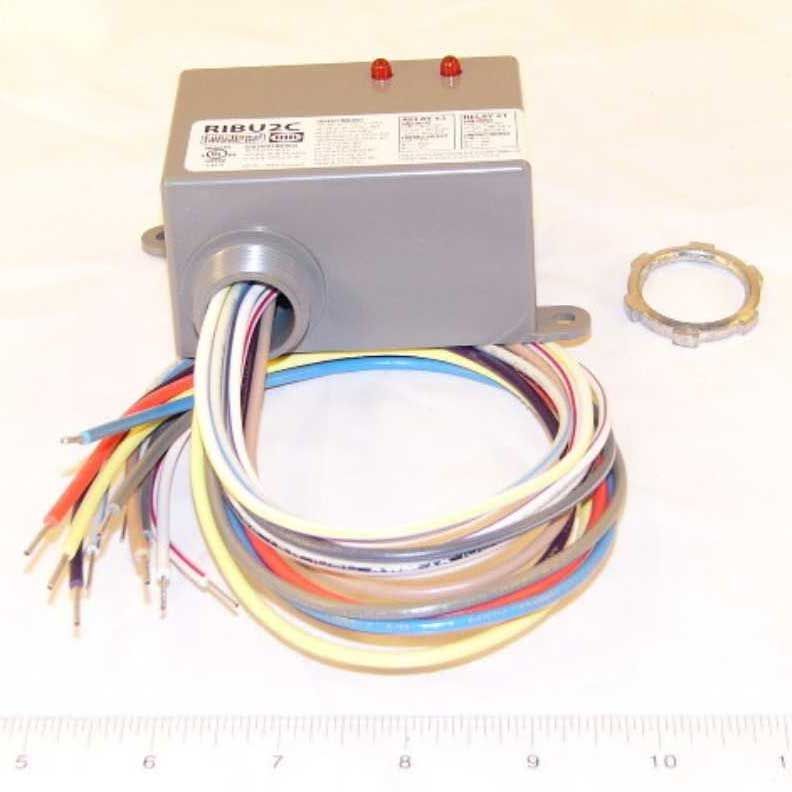

Functional Devices RIBU2C Enclosed Pilot Relays 10A SPDT with 10-30V AC/DC/120V AC Coil

Product Description

Functional Devices RIBU2C is an enclosed pilot relay designed for various applications. This model features a 10 amp SPDT configuration suitable for 10-30V AC/DC and 120V AC coils. It is UL listed for safety and efficiency.

• Coil uses low current and accepts a wide range of AC and DC voltages
• UL listed for UL916 Energy Management and UL864 Fire
• Color-coded wires prevent connection errors

Product Highlights

The RIBU2C relay is ideal for pilot applications, ensuring reliable operation in residential and commercial setups.

Product Information

Standard Information

• Brand: Functional Devices
• Manufacturer: Functional Devices, Inc

Technical Specifications

• MPN: RIBU2C
• Contact Type: SPDT
• Voltage Rating: 10-30V AC/DC; 120V AC
• Current Rating: 10A
• Dimensions: 2.3 inches height, 3.2 inches width, 1.8 inches depth
• Coil Type: Continuous duty
• Relay Life Expectancy: Minimum ten million cycles
• Approvals: UL, CE, RoHS
