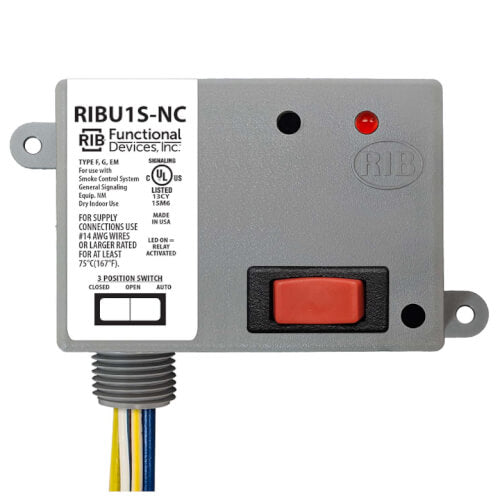

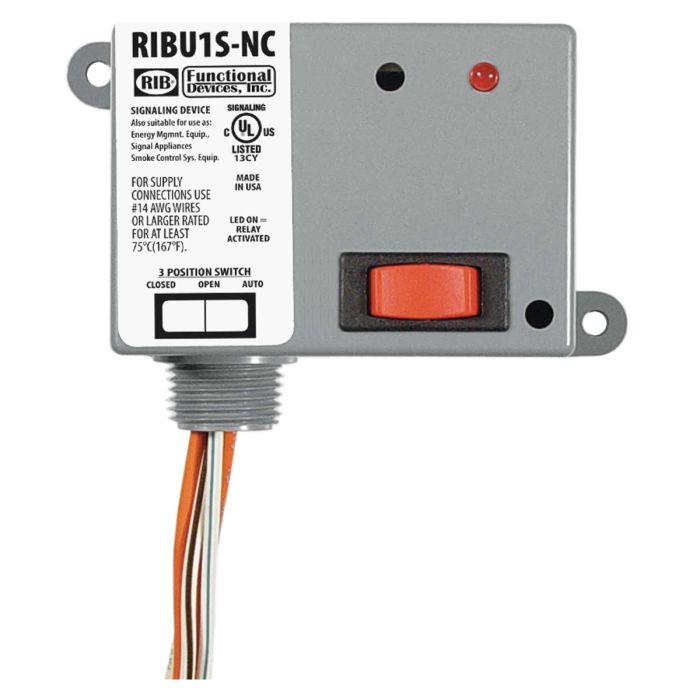

Functional Devices RIBU1S-NC Enclosed Pilot Relay 10 Amps SPST-N/C with Override

Product Description

The Functional Devices RIBU1S-NC is a reliable enclosed pilot relay with a rating of 10 amps. It operates at 10 to 30 VAC/DC and 120 VAC coil. This relay features a normally closed single pole, single throw (SPST) design and includes an override switch for added functionality.

• Rated for continuous duty applications
• Compact size for easy installation
• LED indicator for relay status

Product Highlights

This pilot relay is ideal for HVAC systems and general electrical applications where control of circuits is necessary.

Product Information

Standard Information

• Brand: Functional Devices
• Part Number: RIBU1S-NC

Technical Specifications

• Relay Type: SPST
• Voltage Range: 10/30 VAC/DC, 120 VAC
• Resistive Load: 10 Amperes
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5% to 95% (non-condensing)
• Expected Relay Life: 10 million cycles minimum
• Operate Time: 20 milliseconds
• Dimensions: 2.30 inches x 3.20 inches x 1.80 inches
