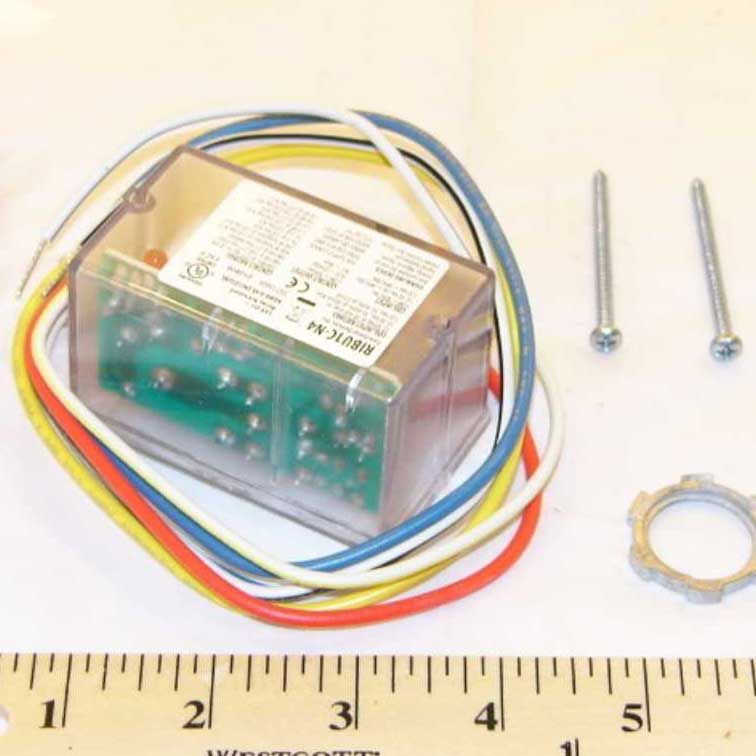

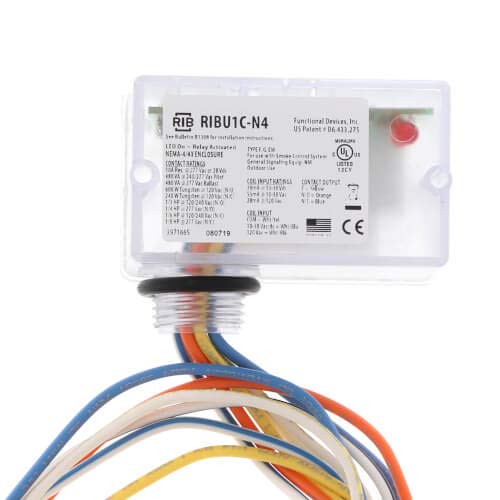

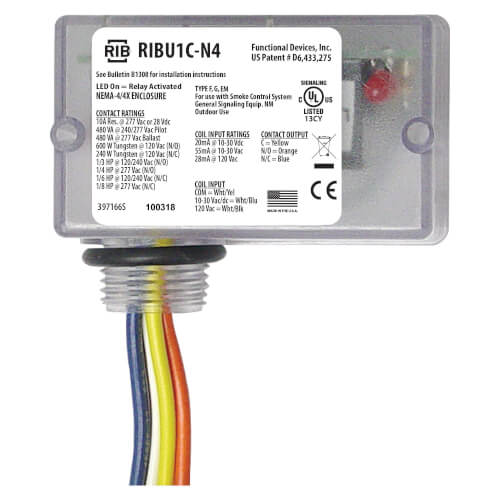

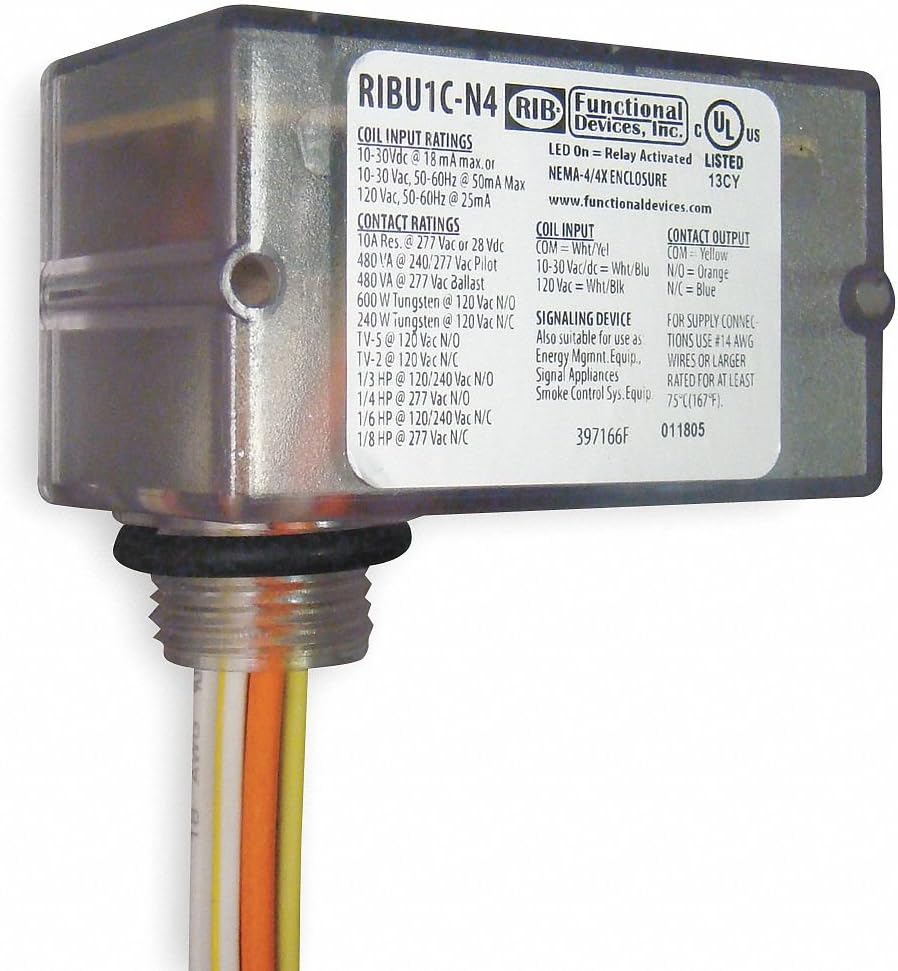

Functional Devices RIBU1C-N4 Enclosed Pre-Wired Relay 10A@277VAC SPDT

Product Description

The Functional Devices RIBU1C-N4 Enclosed Pre-Wired Relay is engineered for reliable performance. This relay supports a 120V AC coil voltage and has a contact form of SPDT with a current rating of 10 amps. Suitable for fan relays, it is designed to handle 10 to 30V AC, 120V AC/DC input voltage.

• 10 Amp current rating
• Enclosed NEMA 4X housing
• SPDT contact form

Product Highlights

This relay is ideal for use with exhaust fans, motors, and vacuums. It features a sturdy enclosed design for enhanced durability and protection.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIBU1C-N4
• Manufactured by: Functional Devices

Technical Specifications

• Current Rating: 10 Amps
• Contact Form: SPDT
• Maximum Switching Current: 10 Amps
• Coil Voltage: 120V AC / 10 to 30V AC/DC
• Enclosure Type: NEMA 4X
• Operating Temperatures: -30 to 140 Degrees F
• Body Dimensions: 1.5 in (Depth) x 2.8 in (Width) x 1.7 in (Height)
• Weight: 0.31 lbs
