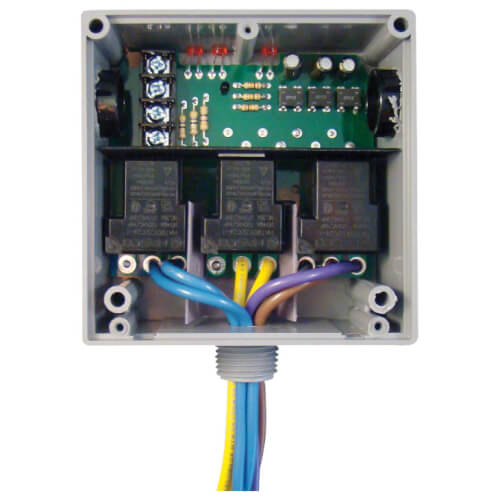

Functional Devices RIBT243B Power Relay 20 Amp 2 SPST-N/O + 1 SPDT 24 Vac/dc Coil

Product Description

The Functional Devices RIBT243B is a robust enclosed power relay, designed to operate efficiently with a 24 Vac/dc coil. This relay is ideal for applications requiring high/low voltage separation and is housed in a NEMA 1 enclosure for enhanced protection.

• Long lifecycle with a minimum of 10 million mechanical operations.
• Efficient operation within a temperature range of -30 to 140 degrees Fahrenheit.
• Visual indication through an LED when activated.

Product Highlights

This power relay offers reliable switching for industrial applications with its dual SPST-N/O and one SPDT configuration, supporting 20 Amps for various control systems.

Product Information

Standard Information

• Brand: Functional Devices
• Model: RIBT243B

Technical Specifications

• Type: Power Relay
• Contact Configuration: 2 SPST-N/O + 1 SPDT
• Coil Voltage: 24 Vac/dc
• Dimensions: 4 inches x 4 inches x 1.8 inches
• Humidity Tolerance: 5% to 95% non-condensing
• Operate Time: 18ms
• Weight: Approximately 0.96 pounds
