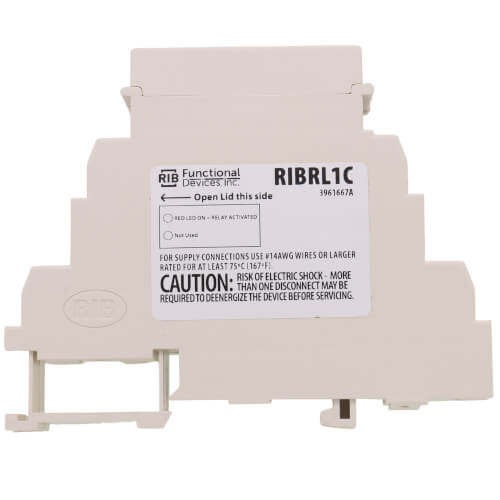

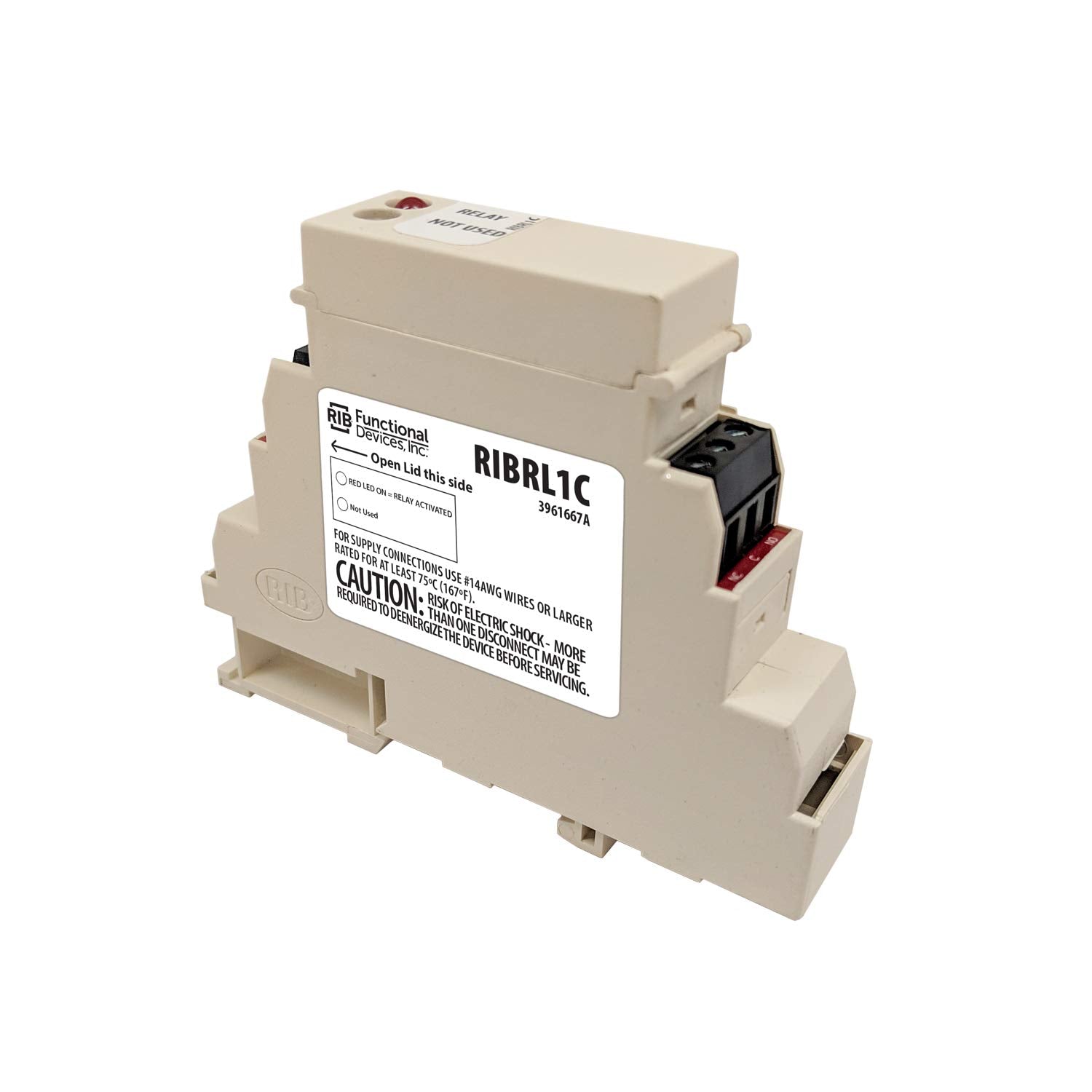

Functional Devices RIBRL1C DIN Rail Relay 10 Amp SPDT 10-30 Vac/dc

Product Description

The Functional Devices RIBRL1C DIN Rail Relay is engineered for robust industrial automation applications. This product efficiently handles 10 amps with a voltage range of 10 to 30 Vac/dc, making it a reliable choice for professional installation.

• Compact and easy-to-install DIN rail mounting system
• Features SPDT (Single Pole Double Throw) operation mode
• LED indicator for relay status, enhancing usage clarity

Product Highlights

This relay provides a consistent performance with a mechanical life expectancy of at least 10 million cycles, and operates effectively within temperatures from minus 30 to 140 degrees Fahrenheit. Its quick operate time of 18 milliseconds ensures swift response in circuit operations.

Product Information

Standard Information

• Current Rating: 10 Amps
• Operation Mode: Automatic

Technical Specifications

• Dimensions: 3.88 inches x 2.76 inches x 0.78 inches
• Mounting Type: DIN Rail
• Contact Type: SPDT
• Humidity Tolerance: 5 to 95% non-condensing
• Gold Flash Contacts: Yes for enhanced durability
• Approvals: UL Listed, UL916, C-UL, CE, RoHS compliant
