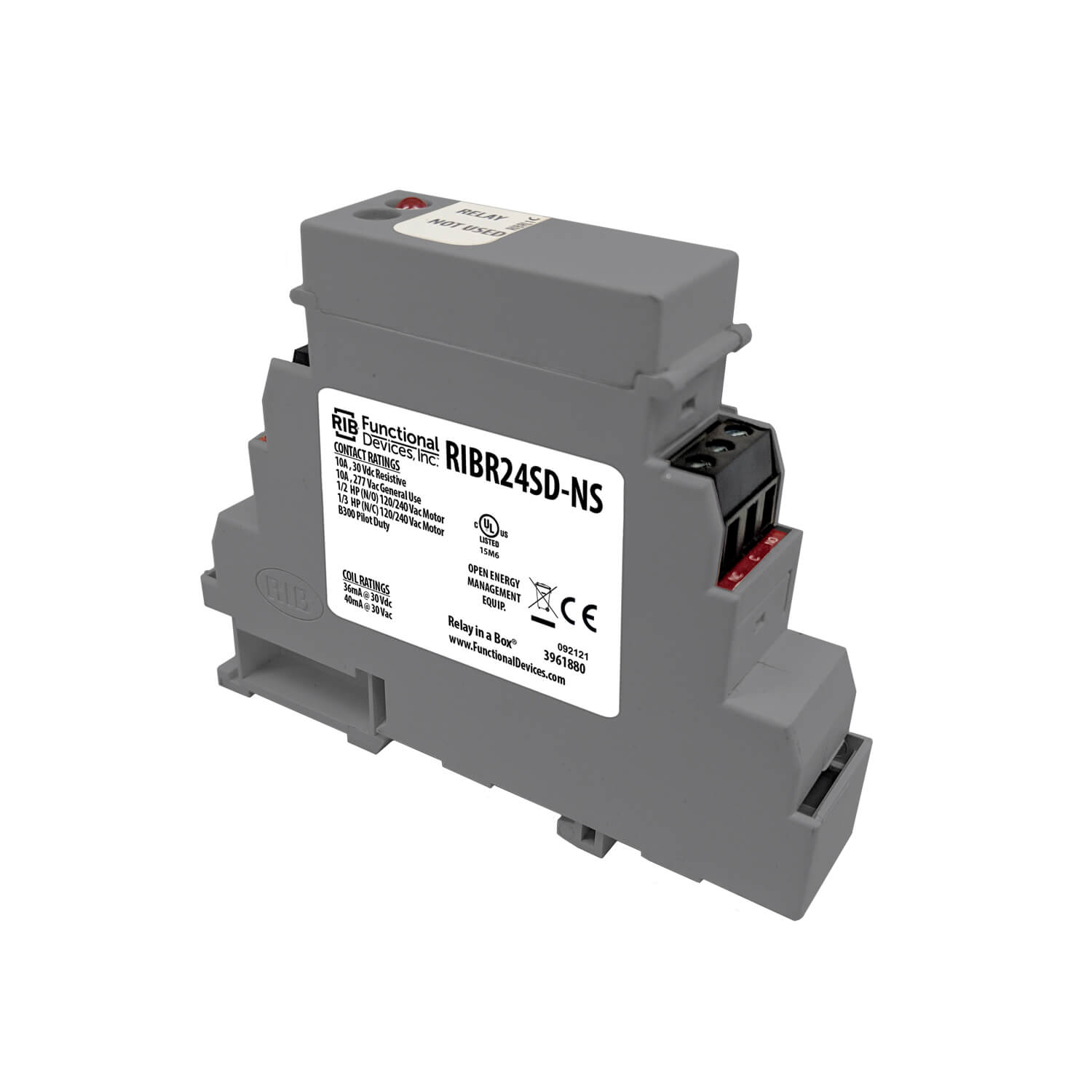

Functional Devices RIBR24SD-NS DIN Rail Mount Relay 10 Amp DPDT with Override 24 VAC/DC

Product Description

The FUNCTIONAL DEVICES RIBR24SD-NS is a DIN Rail Mount Relay featuring a 10 Amp DPDT switch with an override function, operating with a 24 VAC/DC coil. This non-removable enclosed relay is designed for DIN rail mounting without requiring a separate socket, simplifying panel projects. It includes an LED indicator for relay status.

• DPDT Switch configuration for versatile control.
• Operates with a 24 VAC/DC coil voltage.
• Features a 10 Amp contact rating and manual override.

Product Highlights

DIN Rail mountable DPDT relay with 10 Amp rating, 24 VAC/DC coil, manual override, and LED status indicator.

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIBR24SD-NS
• Country of Origin: USA

Technical Specifications

• Contact Type: DPDT
• Coil Voltage: 24 VAC/DC
• Current Rating: 10 Amp
• Mounting Type: DIN Rail
• Manual Override: Yes
• Relay Type: Pilot
• Number of Relays: 1
• Status Indicator: LED on = Activated
• Terminal Wire Gauge: 14-22 AWG
• Certifications: UL Listed, UL916, C-UL, CE, RoHS
