Functional Devices RIBR24SD Din rail relay 10 Amp (1 Relay) AR24D

Product Description

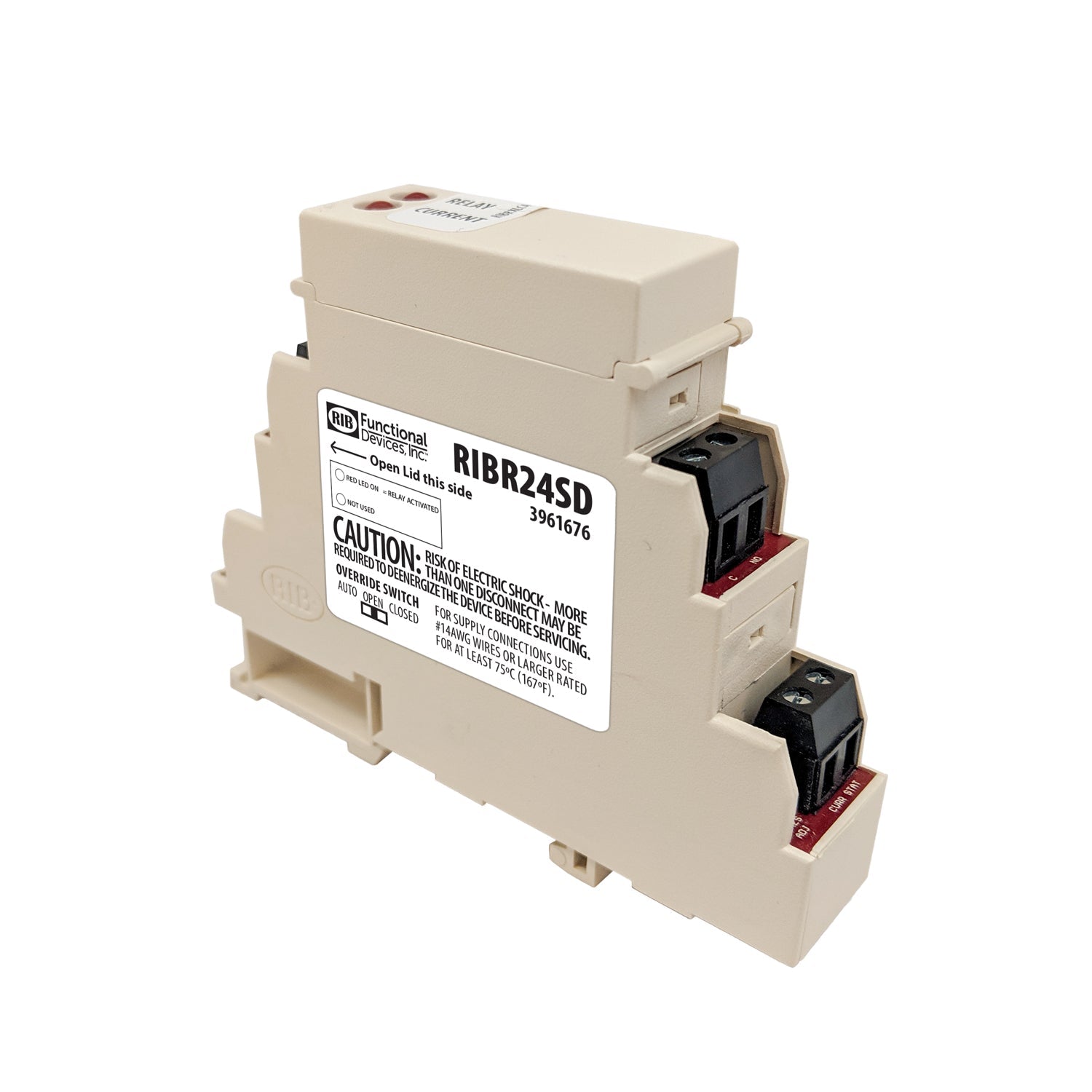

Functional Devices RIBR24SD is a DIN-rail mount DPDT relay with a 24 VAC/DC coil and manual override, rated for 10 amp contacts. The relay provides a single DPDT switching element for pilot and control circuits and includes an LED status indicator. It is suitable for HVAC, building automation, and lighting control applications, supports 14-22 AWG terminal connections, and carries agency approvals such as UL and CE.

• DPDT contact configuration rated 10 A for resistive and general use; includes manual override
• 24 VAC/DC coil with LED status indicator; specified pull-in and drop-out voltages
• DIN rail mounting with 14-22 AWG terminal strip; multiple approvals including UL and CE

Product Highlights

DIN rail DPDT relay, 24 VAC/DC coil, 10 A contacts, manual override, LED status indicator, UL/CE listed; replacement part AR24D.

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIBR24SD
• Country of Origin: United States

Technical Specifications

• Brand: Functional Devices
• MPN: RIBR24SD
• Mounting Type: DIN rail
• Contact Configuration: DPDT (double pole double throw)
• Contact Rating: 10 Amp
• Coil Voltage: 24 VAC/DC
• Coil Pull-In Voltage: 18 VAC / 20 Vdc
• Coil Drop-Out Voltage: 3 VAC / 3.8 Vdc
• Number of Relays: 1
• Relay Type: Continuous duty DPDT
• Expected Mechanical Life: 10 million cycles minimum
• Operating Temperature: -30 to 140 F
• Humidity Range: 5 to 95% noncondensing
• Operate Time: 8 ms
• Relay Status Indicator: LED on = activated
• Dimensions: 3.88 x 2.76 x 0.78 in
• Terminal Wire Range: 14-22 AWG
• Approvals: UL Listed, UL916, C-UL, CE, RoHS
• Replacement Part: AR24D
• Accessories: ADIN35, ADIN35ES
• Contact Ratings: 10 Amp resistive @ 30 Vdc; 10 Amp general use @ 277 Vac; 1/2 HP @ 120-240 Vac (N/O); 1/3 HP @ 120-240 Vac (N/C); B300 pilot duty
• Power and Control Current: 24 mA @ 18 Vac; 32 mA @ 24 Vac; 40 mA @ 30 Vac; 20 mA @ 20 Vdc; 24 mA @ 24 Vdc; 36 mA @ 24 Vdc
• Typical Applications: HVAC, building automation, lighting control
• Country of Origin: Made in the USA
