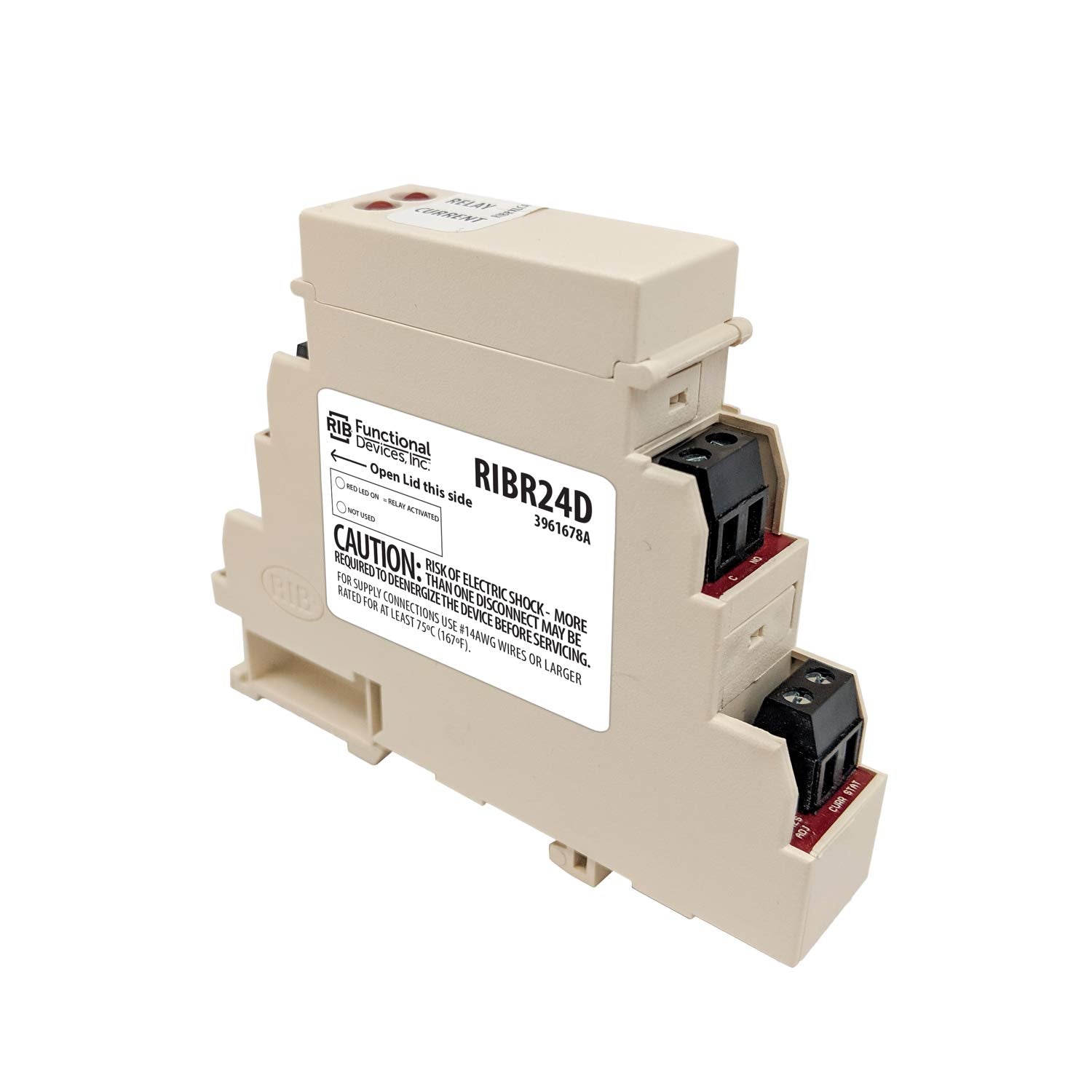

Functional Devices RIBR24D DIN Rail Mount Relay 10 Amp DPDT 24Vac/dc Coil

Product Description

The Functional Devices RIBR24D DIN Rail Mount Relay is designed to provide reliable performance in demanding industrial settings. This relay, with MPN RIBR24D, integrates easily into control panels and systems.

• Compact DIN rail mount
• Handles up to 10 Amps
• Accepts a wide range of input voltages

Product Highlights

The RIBR24D features a high current capacity of 10 Amps and both normally open and normally closed contacts for versatile switching. An LED indicator shows relay status for easy diagnostics.

Product Information

Standard Information

• Brand: Functional Devices
• Item Number: RIBR24D

Technical Specifications

• Number of Relays & Contact Type: One DPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140 Fahrenheit
• Humidity Range: 5 to 95 percent (noncondensing)
• Operate Time: 8 milliseconds
• Relay Status: LED On = Activated
• Dimensions: 3.88 x 2.76 x 0.78 inches
• Terminal Strip: 14-22 AWG wire
