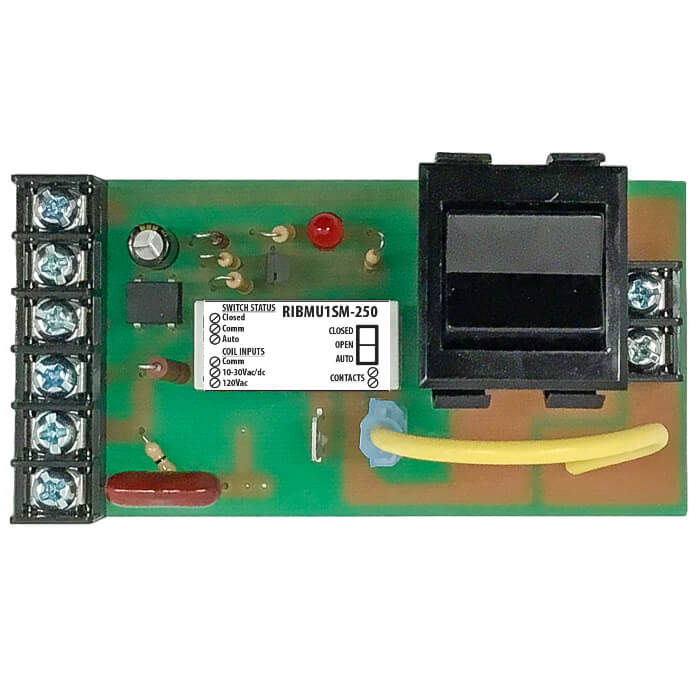

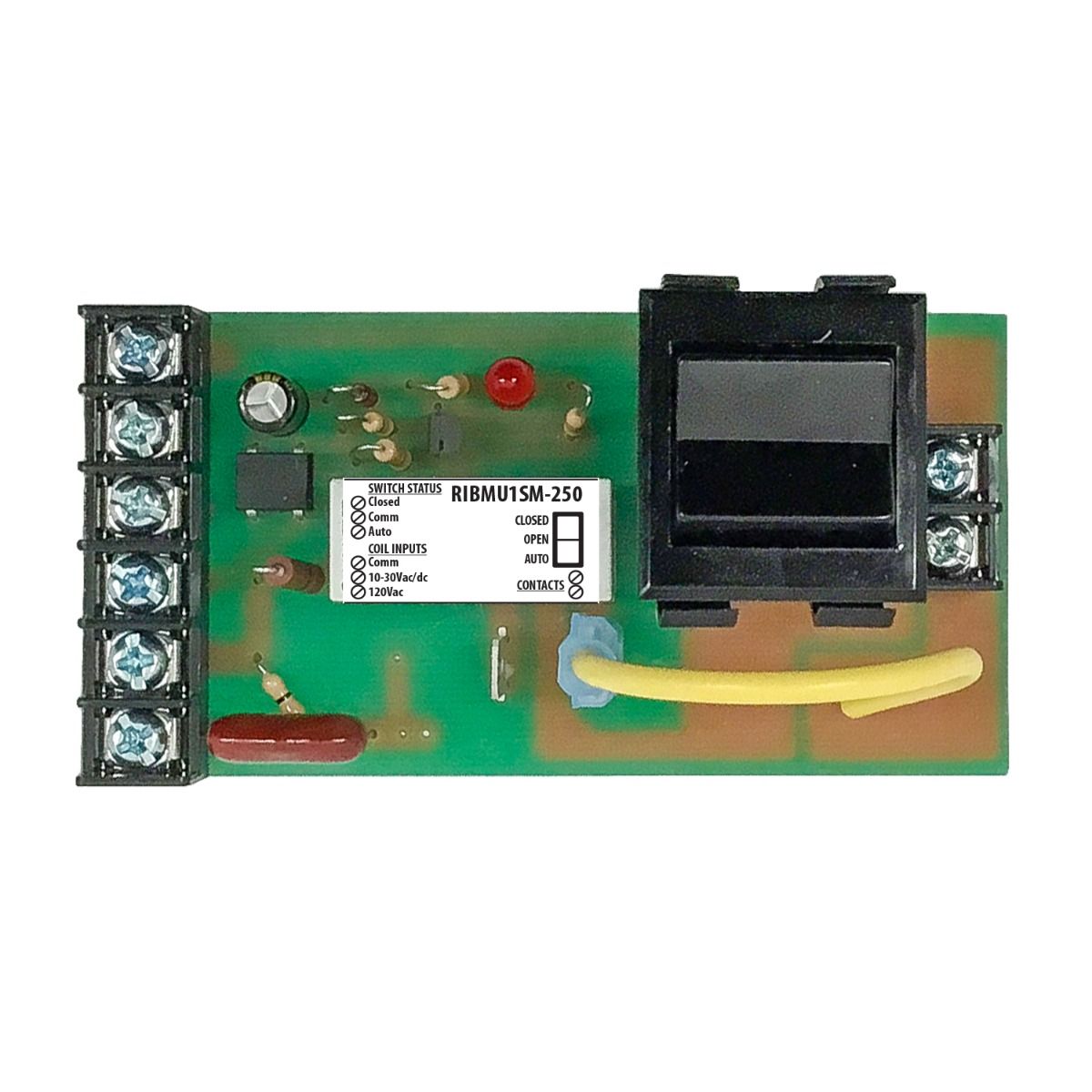

Functional Devices RIBMU1SM-250 Track Mount Pilot Relay, 15 Amps

Product Description

The Functional Devices RIBMU1SM-250 is a track mount pilot relay designed for various applications. This relay operates on ten to thirty volts alternating current/direct current and features a one hundred twenty volts alternating current coil. It is ideal for control systems where reliable switching is needed.

• SPST (Single Pole Single Throw) configuration
• Includes an override switch and a monitor
• Mounting dimensions of four inches

Product Highlights

This product is suitable for HVAC applications, light control, and automation tasks, providing reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Functional Devices
• Part Number: RIBMU1SM-250
• Minimum Order Quantity: 1

Technical Specifications

• Voltage: 10-30 VAC/DC, 120 VAC
• Relay Type: SPST Continuous Duty
• Coil Rating: 15 Amps
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Expected Relay Life: 10 million cycles minimum
• Humidity Range: 5 to 95% non-condensing
• Operate Time: 20 ms
• Dimensions: 2 inches x 4 inches x 1.75 inches
• Track Mount: 4 (MT4 Mounting Track Sold Separately)
