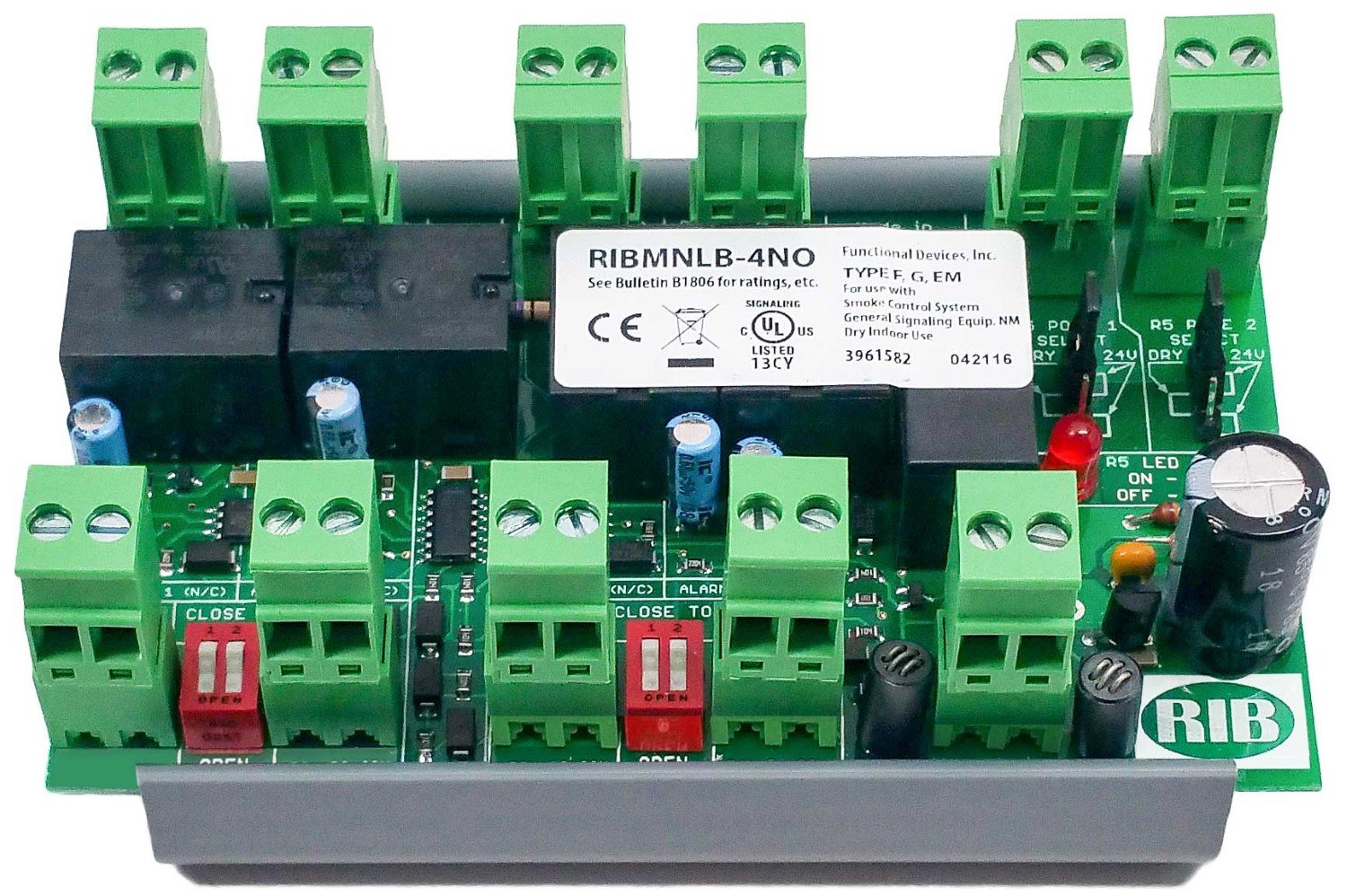

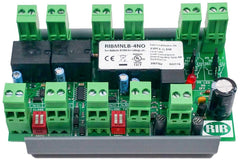

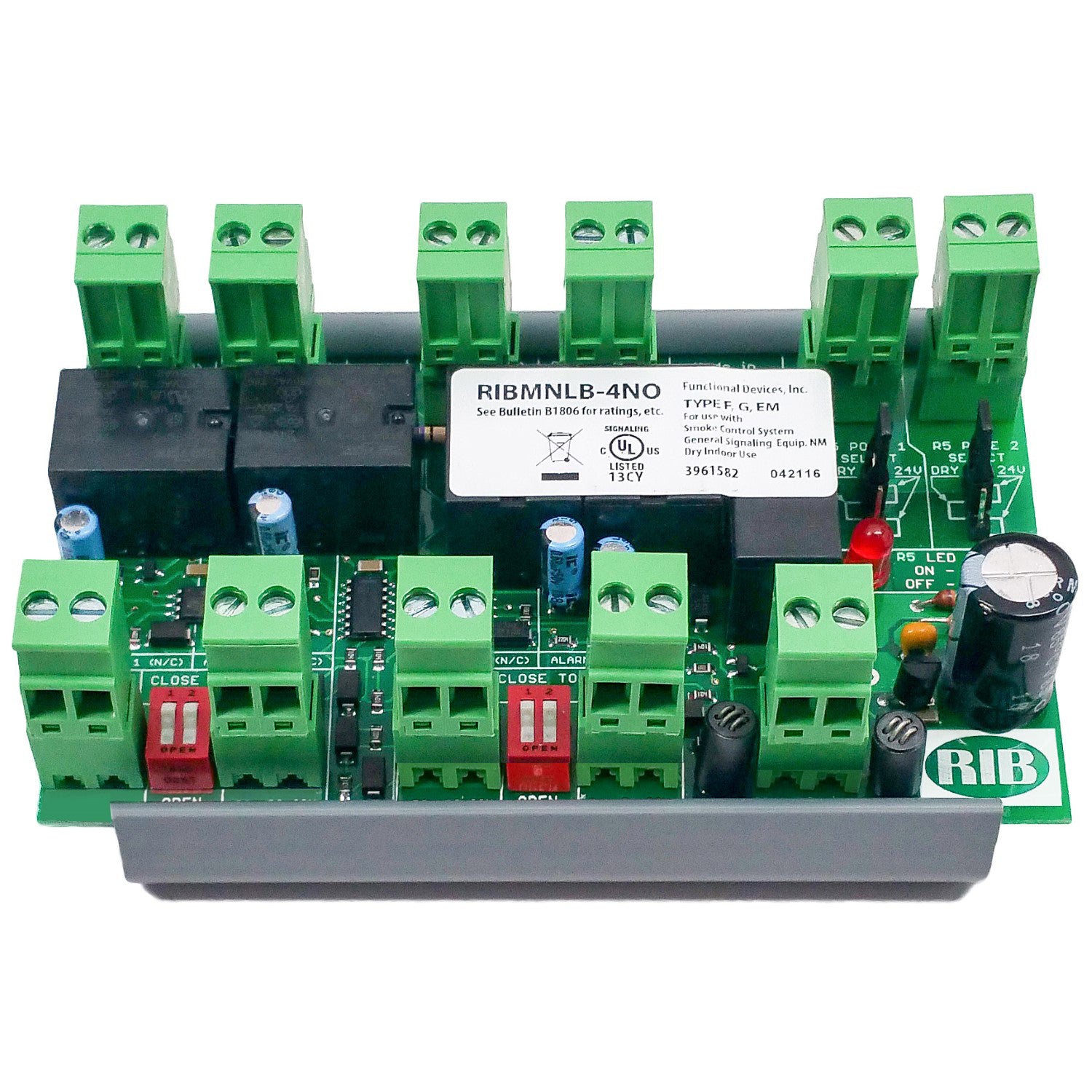

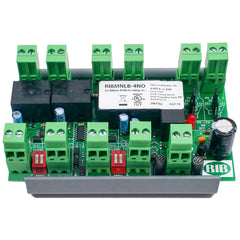

Functional Devices RIBMNLB-4NO Track Mount AHU Fan Safety Alarm Circuit 24 VAC/DC (2.75 in track mount)

Product Description

Functional Devices RIBMNLB-4NO is a general purpose logic circuit for AHU fan safety alarm applications, providing 24 VAC/DC power input and four alarm inputs with normally open outputs. The module is designed for 2.75 in track mounting for HVAC and building automation monitoring and alarm use. It includes LED relay status indication, accepts a range of AC and DC voltages, and is UL listed with a long mechanical life rating.

• 24 VAC/DC power input
• Four alarm inputs with normally open (N/O) outputs
• 2.75 in track mount form factor for snap-track installation

Product Highlights

4-channel track-mount logic board with LED relay status, low coil current, UL and CE approvals

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIBMNLB-4NO

Technical Specifications

• Brand: Functional Devices
• MPN: RIBMNLB-4NO
• Product Type: AHU fan safety alarm / general purpose logic circuit
• Input Voltage: 24 VAC/DC
• Frequency: 50/60 Hz
• Alarm Inputs: 4
• Number of Relays: 4
• Output Type: Normally open (N/O)
• Mounting Type: 2.75 in track mount (snap-track)
• Compatible Track: MT212-6 (listed compatibility)
• Relay Status Indicator: LED (on when relay activated)
• Coil Current: Low coil current
• Life Rating: 10 million cycles minimum (mechanical)
• Operating Temperature: -30 to 140 F (-34 to 60 C)
• Operating Humidity: 5% to 95% non-condensing
• Dimensions: 1.75 in H x 4 in W x 1.25 in L (4.45 x 10.16 x 3.18 cm)
• Approvals: UL 916, UL 864, CSFM, UL File #E68805, CE
