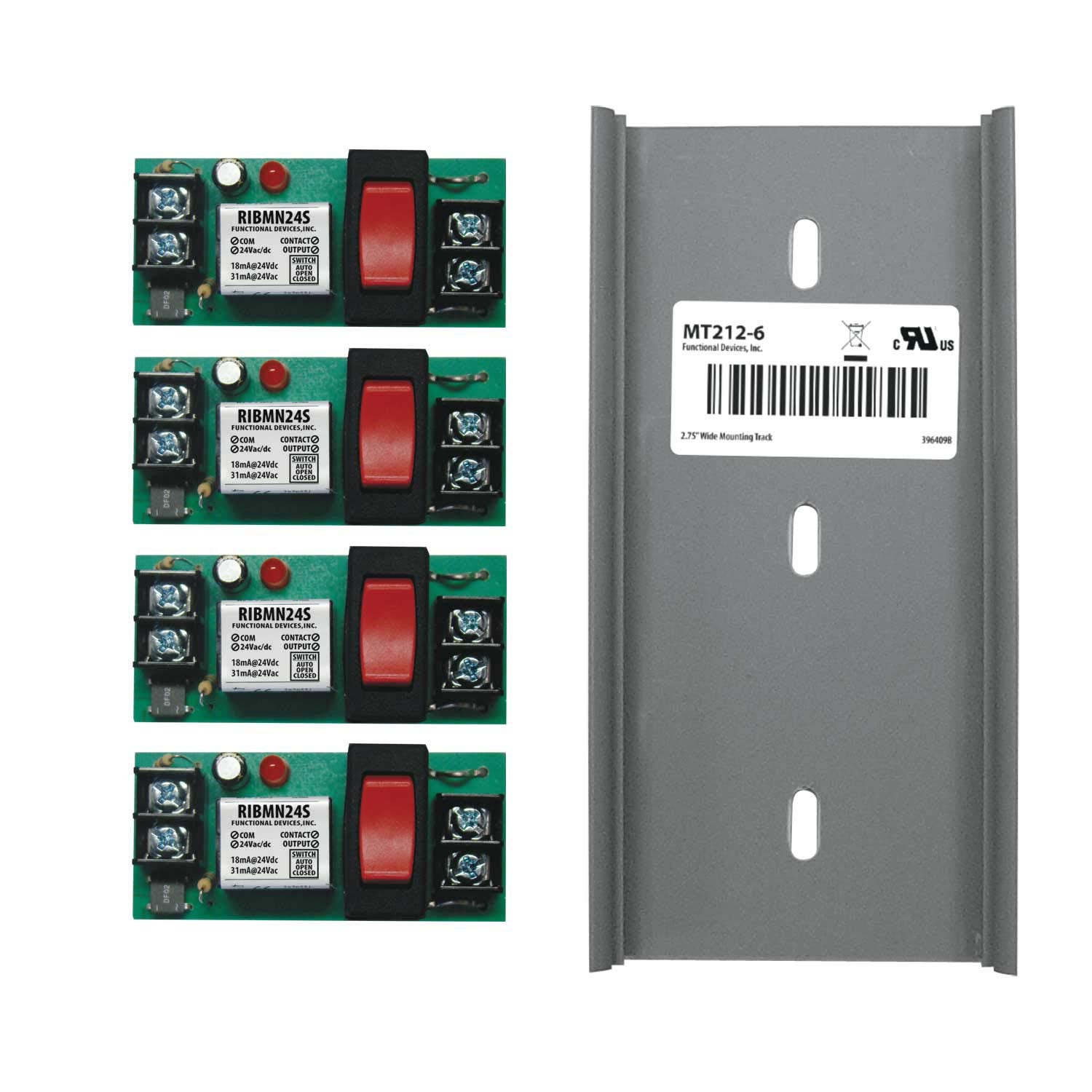

Functional Devices RIBMN24S-4T Four Pilot Relays 15 Amp SPST with Override 24 Vac/dc Coil Track Mount

Product Description

The Functional Devices RIBMN24S-4T relay module is integral for sophisticated control systems in industrial settings, featuring four pilot relays each with a 15 Amp SPST and a manual override.

• Includes a 24 Vac/dc coil suitable for versatile installations.
• Equipped with an MT212-6 mounting track for easy setup.
• Designed for continuous heavy-duty operation, ensuring durability and reliability.

Product Highlights

This track mount relay enhances device performance with isolated NO (normally open) and NC (normally closed) contacts for flexible switching operations. Its straightforward track mount design ensures seamless integration into control panels and machines.

Product Information

Standard Information

• Brand: Functional Devices
• Model: RIBMN24S-4T

Technical Specifications

• Type: Four Pilot Relays
• Control: SPST + Override
• Voltage: 24 Vac/dc
• Dimensions: 6.00 inches x 2.75 inches x 1.50 inches
• Operating Temperature Range: -30 to 140 degrees F
• Relay Life Expectancy: At least 10 million cycles
