Functional Devices RIBMN24Q4C Track Mount I/O Expander 24 VAC/DC 2.75 Inch Track Mount

Product Description

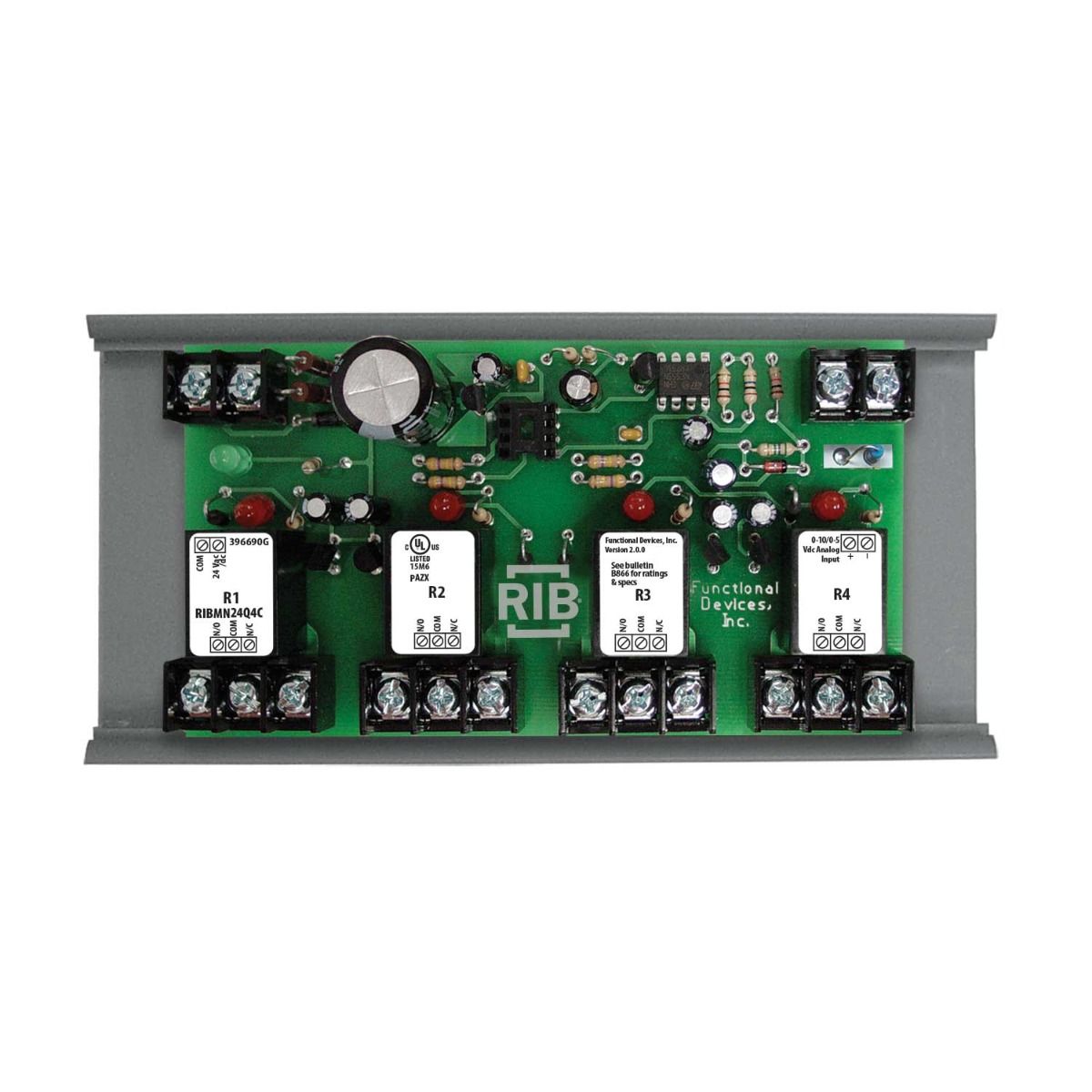

The FUNCTIONAL DEVICES RIBMN24Q4C is a track mount I/O expander featuring 4 SPDT relays. It operates with a 24 VAC/DC power input and accepts 0-10 VDC or 0-5 VDC control inputs. This 2.75-inch track mount unit is rated for 15 Amps, making it suitable for various industrial and commercial control systems requiring reliable signal expansion.

• Convenient and economical to use
• Relay status indicator via LED
• Coil uses low current and accepts a wide range of AC and DC voltages

Product Highlights

This I/O expander offers 4 SPDT relays, 24 VAC/DC power, and flexible 0-10 VDC/0-5 VDC control inputs in a 2.75-inch track mount design.

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIBMN24Q4C
• Country of Origin: USA

Technical Specifications

• Type: I/O Expander
• Number of Relays: 4
• Contact Type: SPDT
• Contact Rating: 15 A
• Power Input: 24 VAC/DC
• Coil Voltage: 24 VAC, 24 VDC
• Control Input: 0-10 VDC/ 0-5 VDC
• Mounting: Track Mount
• Mounting Size: 2.75 in.
• Relay Status Indicator: LED, ON - relay activated
• Frequency: 50/60 Hz
• Wire Length: 16" (40.6 cm)
• Life Rating: 10 million cycles minimum mechanical
• Operating Temperature: -30° to 140°F (-34° to 60°C)
• Operating Humidity: 5% to 95% non-condensing
• Housing Type: NEMA 1, plenum rated
• Conduit Hub: 1/2" NPT, 3/4" NPT
• Approvals: UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
