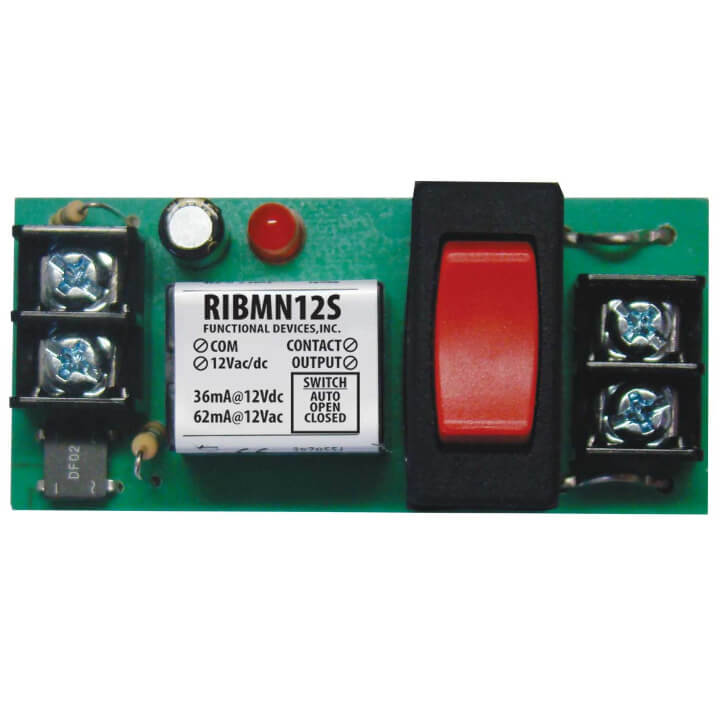

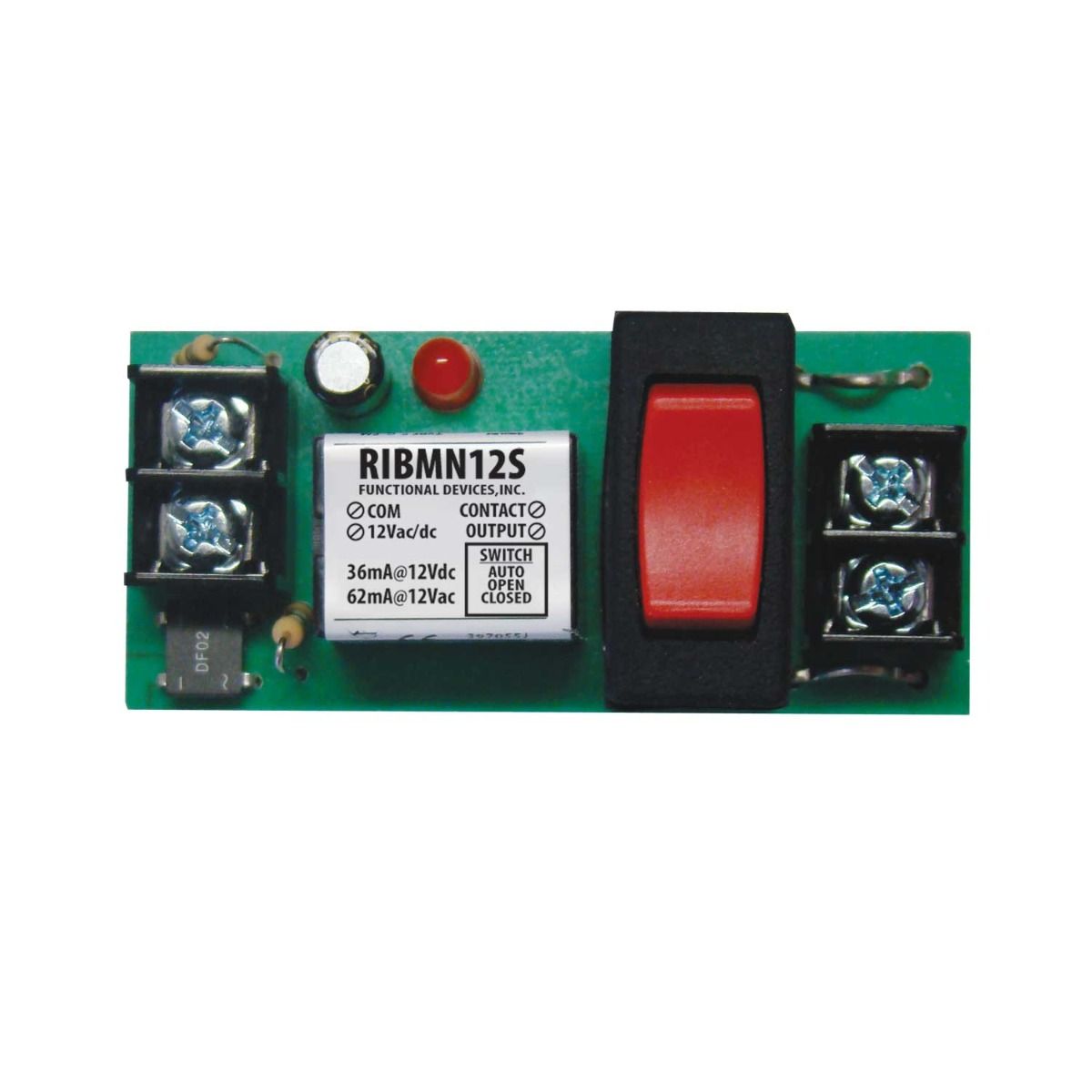

Functional Devices RIBMN12S Track Mount Pilot Relay, 15 Amps

Product Description

The Functional Devices RIBMN12S is a track mount pilot relay that operates on 12 VAC/DC and can handle up to 15 amps of current. This relay is designed for circuit control in various electrical applications. It features a Single Pole Single Throw (SPST) configuration and includes an override switch for easy manual operation.

• SPST configuration
• 12 VAC/DC coil
• Includes override switch

Product Highlights

The RIBMN12S is suitable for electrical projects where reliable control of electrical signals is necessary. Its compact design fits well in tight spaces and is perfect for use in HVAC systems, lighting controls, and other automation tasks.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIBMN12S

Technical Specifications

• Type: Relay
• Relay Type: SPST
• Voltage: 12 VAC/DC
• Current Rating: 15 Amps
• Expected Relay Life: 10 million cycles minimum
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95% non-condensing
• Dimensions: 1.25 inches x 2.75 inches x 1.75 inches
• Operate Time: 6 milliseconds
• Relay Status Indication: LED indicator for activation
• Track Mount: Fits 2.75 inches (MT212 mounting track sold separately)
