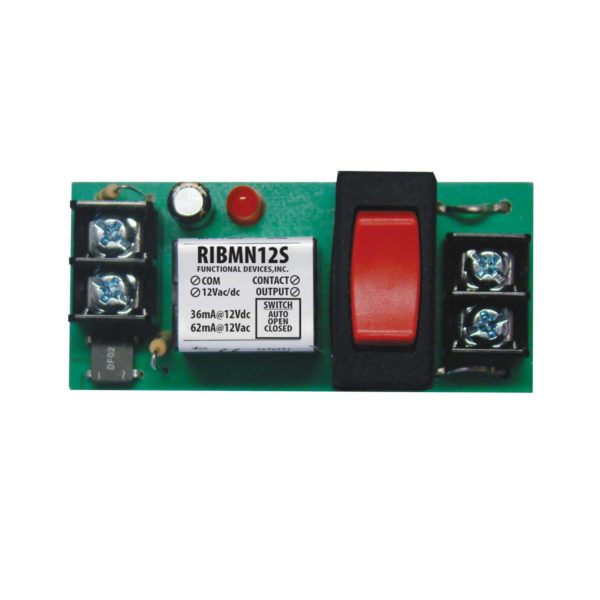

Functional Devices RIBMN12S Panel Relay 12Vac/dc 15Amp SPST with Override

Product Description

The Functional Devices RIBMN12S is a robust panel relay designed for simplifying operations in electrical circuits. Manufactured by Functional Devices, it is known for its reliability and durability in continuous usage. This relay functions with a 12Vac/dc power source, supports a single-pole single-throw (SPST) operation, and includes a manual override feature.

• Compact design measuring 2.75 inches accommodates easy installation.
• Power handling capability of up to 15 amps for light to moderate load operations. d>

  Ensures a long operational life with an estimated relay life of at least 10 million mechanical cycles.

Technical Specifications

• Model: RIBMN12S
• Type: SPST, 12Vac/dc
• Dimensions: Length: 10.01 inches, Width: 10.01 inches, Height: 10.01 inches
• Power: 15Amp
• Override Capability: Manual override available
• Expected Relay Life: Minimum 10 million cycles
• Operating Conditions: Temperature range from -30 to 140 degrees Fahrenheit, Humidity range from 5 to 95 percent non-condensing
• Response Time: Operate time approximately 6ms
