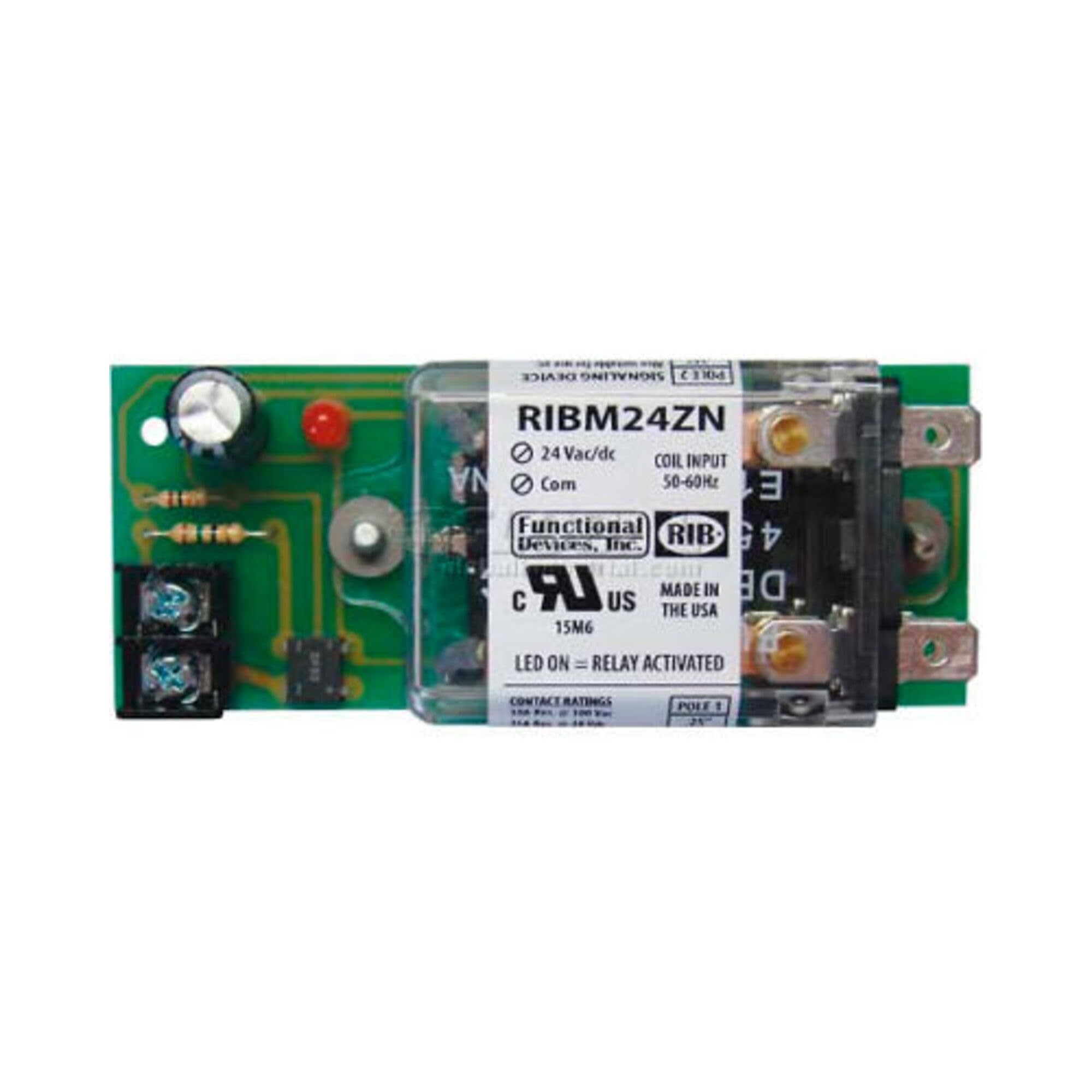

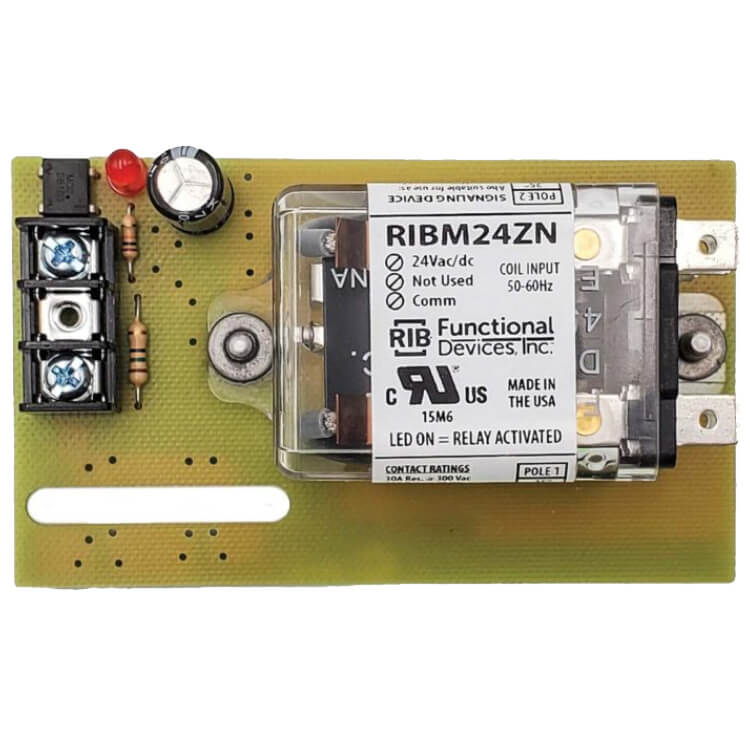

Functional Devices RIBM24ZN track mount relay 30 amps 4.00 in. track mount

Product Description

The FUNCTIONAL DEVICES RIBM24ZN is a Track Mount Relay designed for reliable electrical control. It features a DPDT contact form and operates with a 24 VAC/DC coil, making it versatile for different power systems. This relay is rated for 30 Amps and measures 4.00 inches in length, providing robust performance for track mounting applications.

• DPDT contact form for versatile switching applications.
• Operates with a 24 VAC/DC coil voltage.
• Rated for 30 Amps, suitable for high-current applications.

Product Highlights

This 4.00-inch track mount power relay offers reliable DPDT switching with a 24 VAC/DC coil and 30 Amp capacity.

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIBM24ZN

Technical Specifications

• Current Rating: 30 Amps
• Contact Form: DPDT
• Coil Voltage: 24 VAC/DC
• Mounting Type: Track Mount
• Product Type: RELAY
• Manufacturer: Functional Devices
• Brand: Functional Devices
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 18ms
• Relay Status: LED On = Activated
