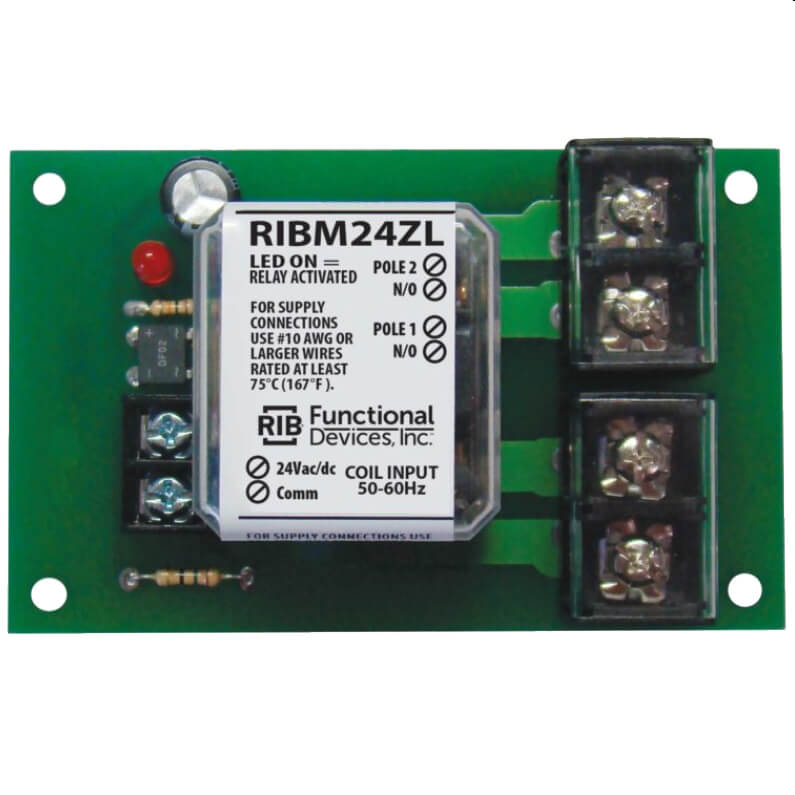

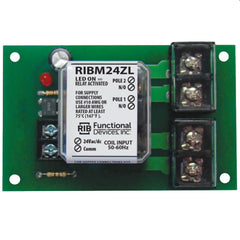

Functional Devices RIBM24ZL 4 inch track mount power relay 30 amp DPST-N/O 24 VAC/DC coil

Product Description

The FUNCTIONAL DEVICES RIBM24ZL is a 4-inch track mount power relay featuring a 30 Amp DPST-N/O configuration and a 24 VAC/DC continuous duty coil. This power relay is designed for various electrical applications, offering a mechanical life of 10 million cycles and operating within a temperature range of -30 to 140° F. Its LED indicator illuminates when activated, providing clear status feedback for efficient system monitoring.

• 4 inch Track Mount
• 30 Amp DPST-N/O
• 24 VAC/DC Coil

Product Highlights

Continuous Duty Coil with LED Status Indicator

Product Information

Standard Information

• Brand: FUNCTIONAL DEVICES
• Manufacturer Part Number: RIBM24ZL

Technical Specifications

• Contact Type: DPST-N/O
• Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Operating Humidity: 5 to 95% (noncondensing)
• Operate Time: 18ms
• Relay Status: LED On = Activated
• Mounting: 4 inch Track Mount
• Coil Voltage: 24 VAC/DC
• Current Rating: 30 A
• Product Type: Power Relay
• Number of Relays: 1
• Frequency: 50/60 Hz
• Approvals: UL 916 Energy Management, UL 864 Fire, CSFM, UL File #E68805, CE
