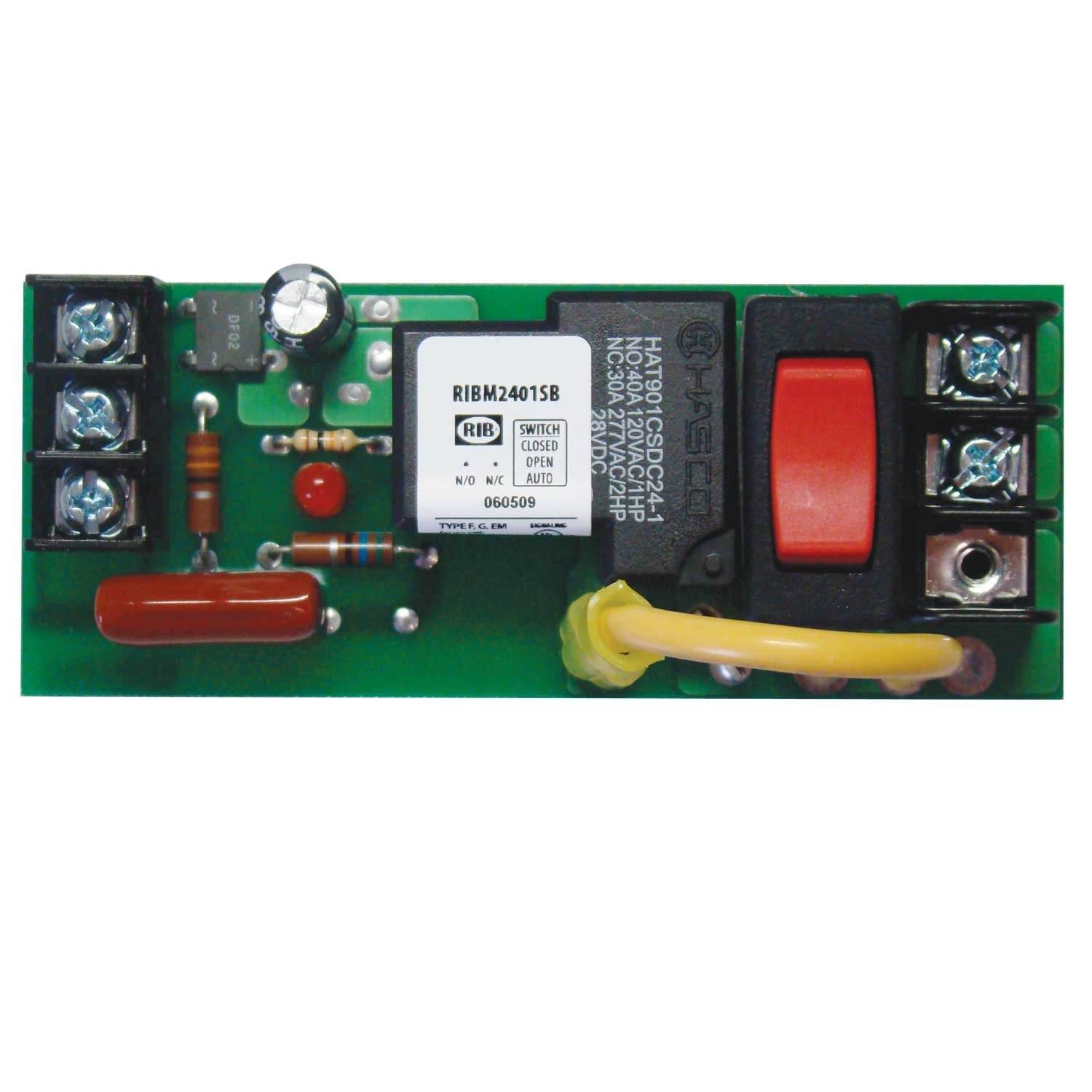

Functional Devices RIBM2401SB Power Relay 20 Amp SPST Override 24 Vac/dc 120 Vac Coil 4.00 Track Mount

Product Description

The Functional Devices RIBM2401SB is a power relay designed for high-power electrical loads. It features a single pole single throw (SPST) switch capable of handling up to 20 amps. This relay is ideal for various industrial applications.

• 20 Amp SPST Switch
• Override Function
• Durable Construction

Product Highlights

This relay provides manual control with its override function, offering flexibility and reliability. It is suitable for industrial settings, ensuring durability and long life.

Product Information

Standard Information

• Brand: Functional Devices
• Item Number: RIBM2401SB

Technical Specifications

• Coil Voltage: 24 Vac/dc/120 Vac
• Contact Type: SPST
• Current Rating: 20 Amps
• Expected Relay Life: 10 million cycles
• Operating Temperature: -30 to 140°F
• Humidity Range: 5 to 95% (non-condensing)
• Operate Time: 18ms
• Dimensions: 1.60 x 4.00 x 1.75 inches
• Track Mount: 4.00 (MT4 Mounting Track Sold Separately)
