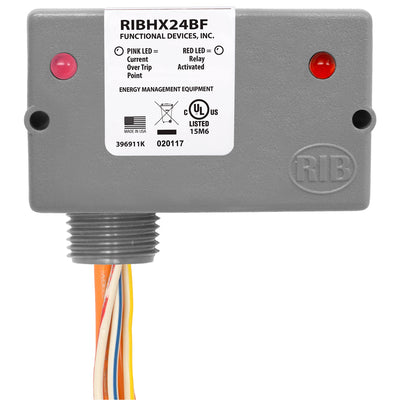

Functional Devices RIBHX24BF Current Switch and Relay Combination 20 Amp SPST-N/O 24 Vac/dc Coil NEMA 1 Housing

Product Description

The Functional Devices RIBHX24BF is a Current Switch and Relay Combination designed for reliable performance in various industrial applications. The switch operates with a 24 Vac/dc coil, providing fixed and precise control over electrical systems.

• Handles up to 20 Amps
• 24 Vac/dc coil operation
• NEMA 1 housing

Product Highlights

This current switch and relay combination is perfect for applications requiring robust and reliable control over electrical systems. Its NEMA 1 housing ensures durability and longevity.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIBHX24BF

Technical Specifications

• Sensor Range: 0.25-20 Amps
• Coil Voltage: 24 Vac/dc
• Housing: NEMA 1
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95 percent (noncondensing)
• Operate Time: 20 ms
• Relay Status: Red LED On = Activated
• Sensor Status: Pink LED On = Current Over Trip Point
• Feedback Output: Solid State Contact 30 Vac/dc, 100 mA
