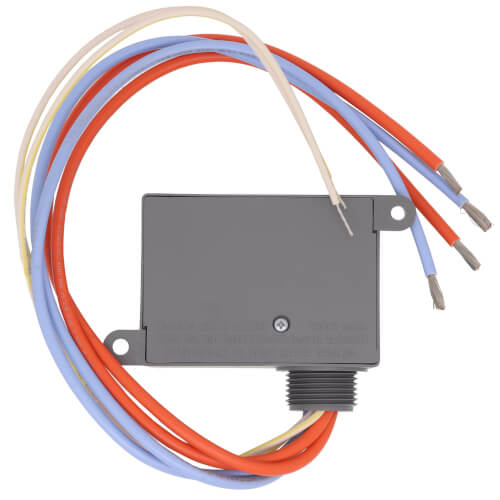

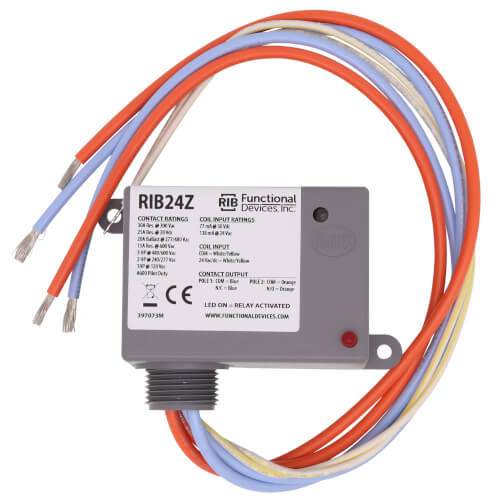

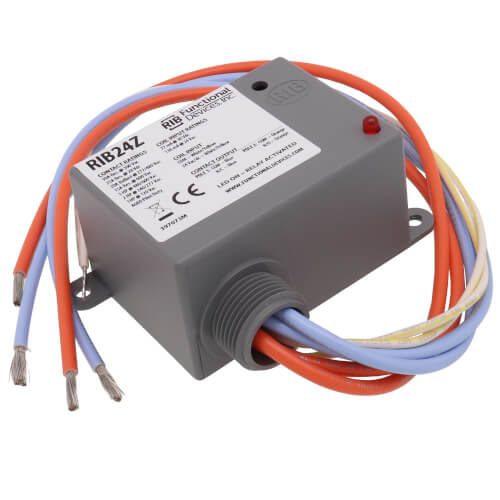

Functional Devices RIB24Z Enclosed Relay SPST 30 Amp 24 Vac/dc Coil

Product Description

Explore the Functional Devices RIB24Z, an enclosed power relay offering robust operational performance and durability. Designed with a 24 Vac/dc coil and a SPST-N/O + SPST-N/C configuration, this relay allows for substantial current handling up to 30 Amps, ideal for various industrial applications.

• Equipped with a continuous duty coil ensuring reliability over 10 million mechanical cycles.
• Operates effectively within a temperature range of -30 to 140 degrees Fahrenheit.
• Features a housing rated NEMA 1 and UL accepted for use in Plenum environments, ensuring compliance with strict safety standards.

Product Highlights

This relay is designed for continuous duty, ensuring long-term reliability and performance in industrial settings. The inclusion of an LED indicator helps in quick diagnostic and status checks, enhancing maintenance efficiency.

Product Information

Technical Specifications

• Coil Voltage: 24 Volts
• Contact Type: SPST
• Current Rating: 30 Amps
• Operation Mode: Automatic
• Dimensions: 2.3 x 3.2 x 1.8 inches
• Expected Relay Life: 10 million cycles
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95% non-condensing
