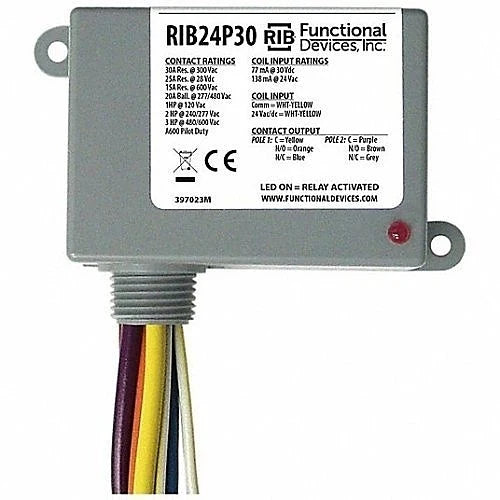

Functional Devices RIB24P30 Relay 24 Vac/dc 30 Amp DPDT

Product Description

The Functional Devices RIB24P30 Relay is designed for versatile use in both AC and DC circuits, supporting fire, HVAC, and other control systems. This relay features a 30 Amp DPDT contact configuration with a 24 Vac/dc coil, making it suitable for demanding applications.

• 30 Amp current rating
• DPDT contact configuration
• Supports AC and DC operation

Product Highlights

The RIB24P30 is built for durability, featuring a rugged construction and gold-flash contacts. Its LED indicator shows relay status, simplifying diagnostics in various environments.

Product Information

Standard Information

• Brand: Functional Devices
• Manufacturer: Functional Devices, Inc
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: RIB24P30
• Amperage: 30
• Type: DPDT
• Voltage: 24 Vac/dc
• Operating Temperature: -30 to 140 F
• Relay Status: LED On = Activated
• Dimensions: 2.3 x 3.2 x 1.8 inches
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
• Relay Life: 10 million cycles minimum mechanical
• Humidity Range: 5 to 95% (non-condensing)
• Wires: 16-gauge, 600V Rated
• Gold Flash: Yes
