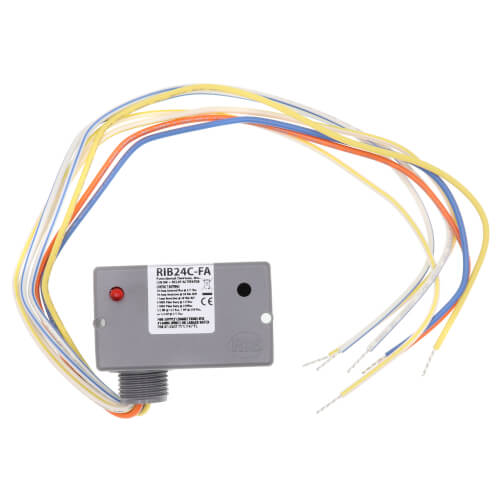

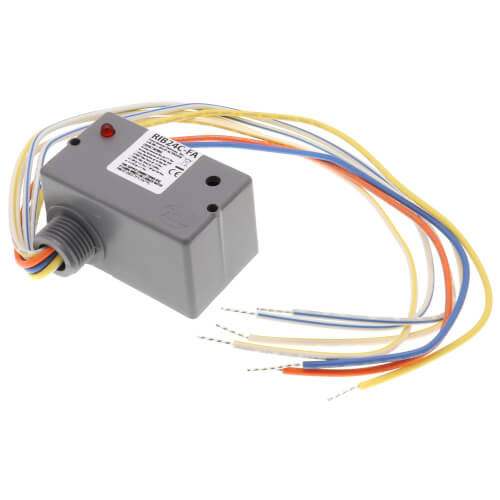

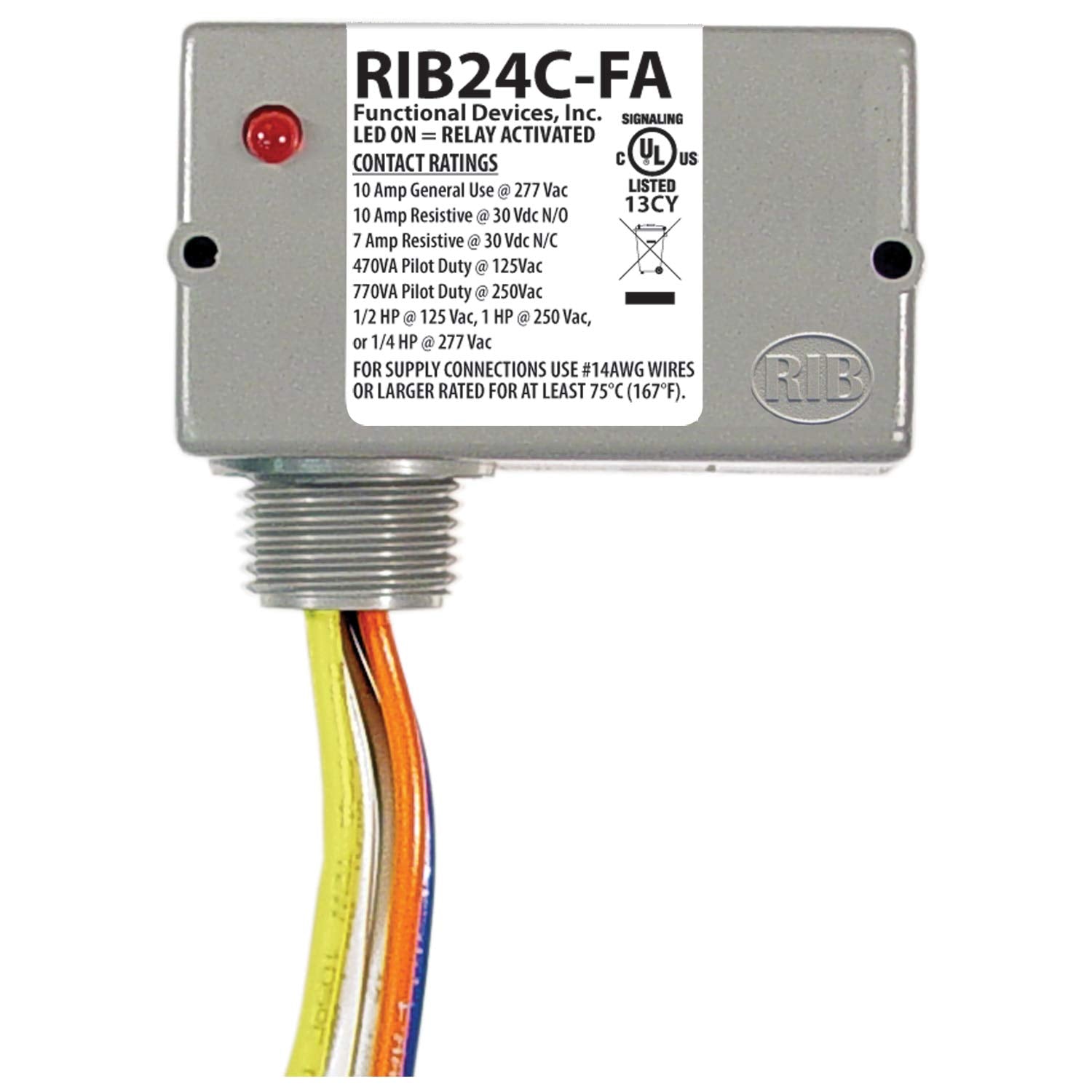

Functional Devices RIB24C-FA Enclosed Polarized Relay SPDT 24V 10A

Product Description

The Functional Devices RIB24C-FA is an enclosed polarized relay designed for reliable operation in a variety of electrical applications. This model features a single-pole double-throw (SPDT) configuration, supporting a 10 amp current rating and operates with a 24 Volt AC/DC coil.

• SPDT configuration ensures versatility in electrical circuit routing
• Designed for continuous duty, enhancing reliability and durability
• LED status indicator provides visual confirmation of relay operation

Product Highlights

Encased in a NEMA 1 housing, the RIB24C-FA offers robust protection for the internal components, ensuring performance in diverse environments. Its operation is capable in temperatures ranging from -30 to 140 degrees Fahrenheit, accommodating various climatic conditions.

Product Information

Standard Information

• Brand: Functional Devices
• Model: RIB24C-FA

Technical Specifications

• Coil Voltage: 24 Volts
• Contact Type: SPDT
• Current Rating: 10 Amps
• Operation Mode: Automatic
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5% to 95% non-condensing
• Product Dimensions: 1.7 x 2.8 x 1.5 inches
