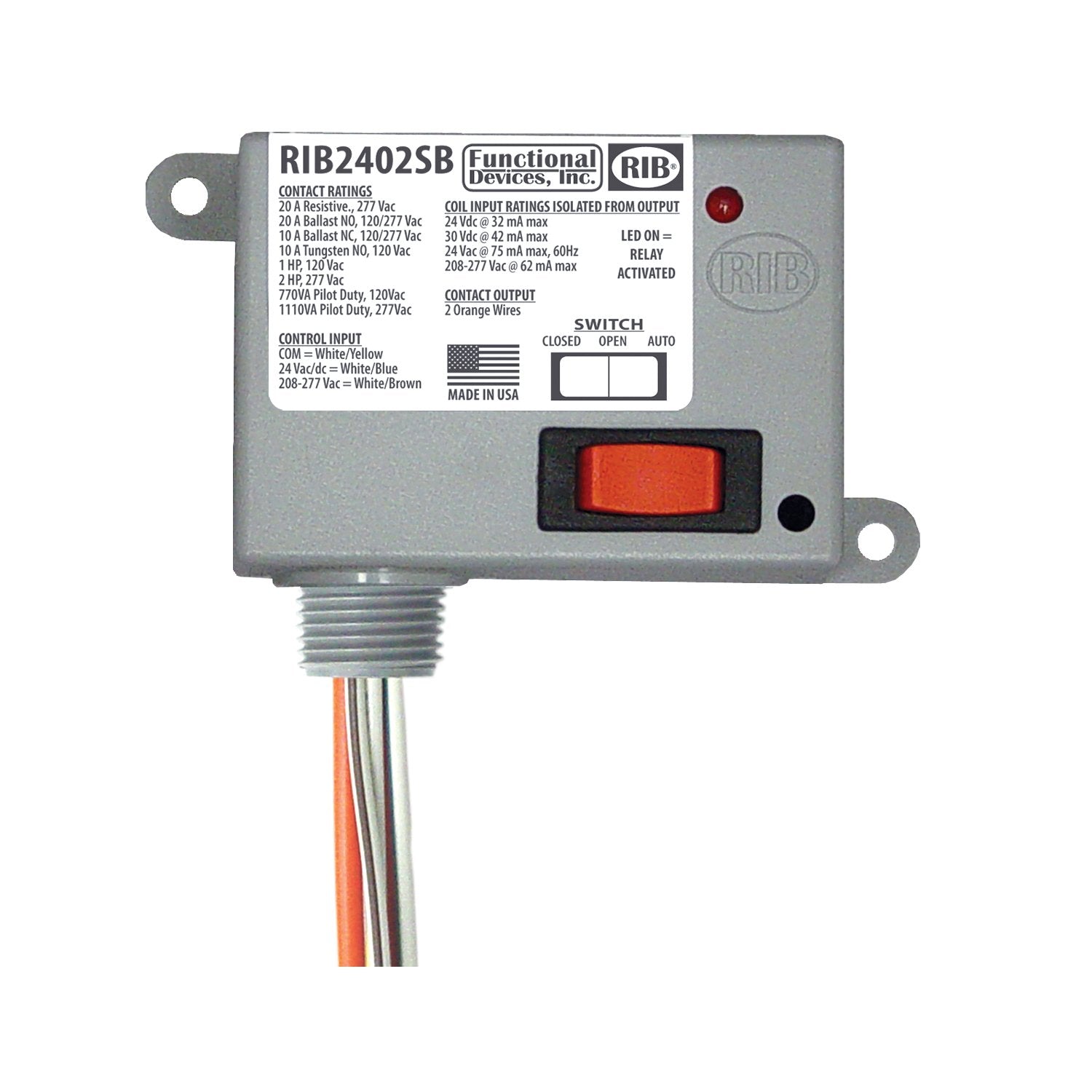

Functional Devices RIB2402SB Power Relay 20 Amp SPST-N/O + Override 24 Vac/dc 208-277 Vac Coil

Product Description

The Functional Devices RIB2402SB is a robust power relay designed for high-demand electrical applications. Featuring a simple SPST-N/O configuration with an override function, this relay is essential for professionals in the industrial and electrical fields.

• Automatic operation mode simplifies usage.
• LED indicator enhances visual management.
• Encased in a NEMA 1 housing for environmental protection.

Product Highlights

This power relay operates with a coil voltage range from 24 to 277 Volts, making it versatile for different electrical setups. Its 20 Amp current rating ensures it can handle substantial power loads. The device also features a quick response time and is built to last with a mechanical life expectancy of over 10 million cycles.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIB2402SB

Technical Specifications

• Coil Voltage: 24 Volts, 208 to 277 Volts
• Contact Type: SPST
• Current Rating: 20 Amps
• Operation Mode: Automatic
• Dimensions: 2.3 inches x 3.2 inches x 1.8 inches
• Weight: 1 Pound
• Humidity Range: 5 to 95 percent non-condensing
• Temperature Range: minus 30 to 140 degrees Fahrenheit
