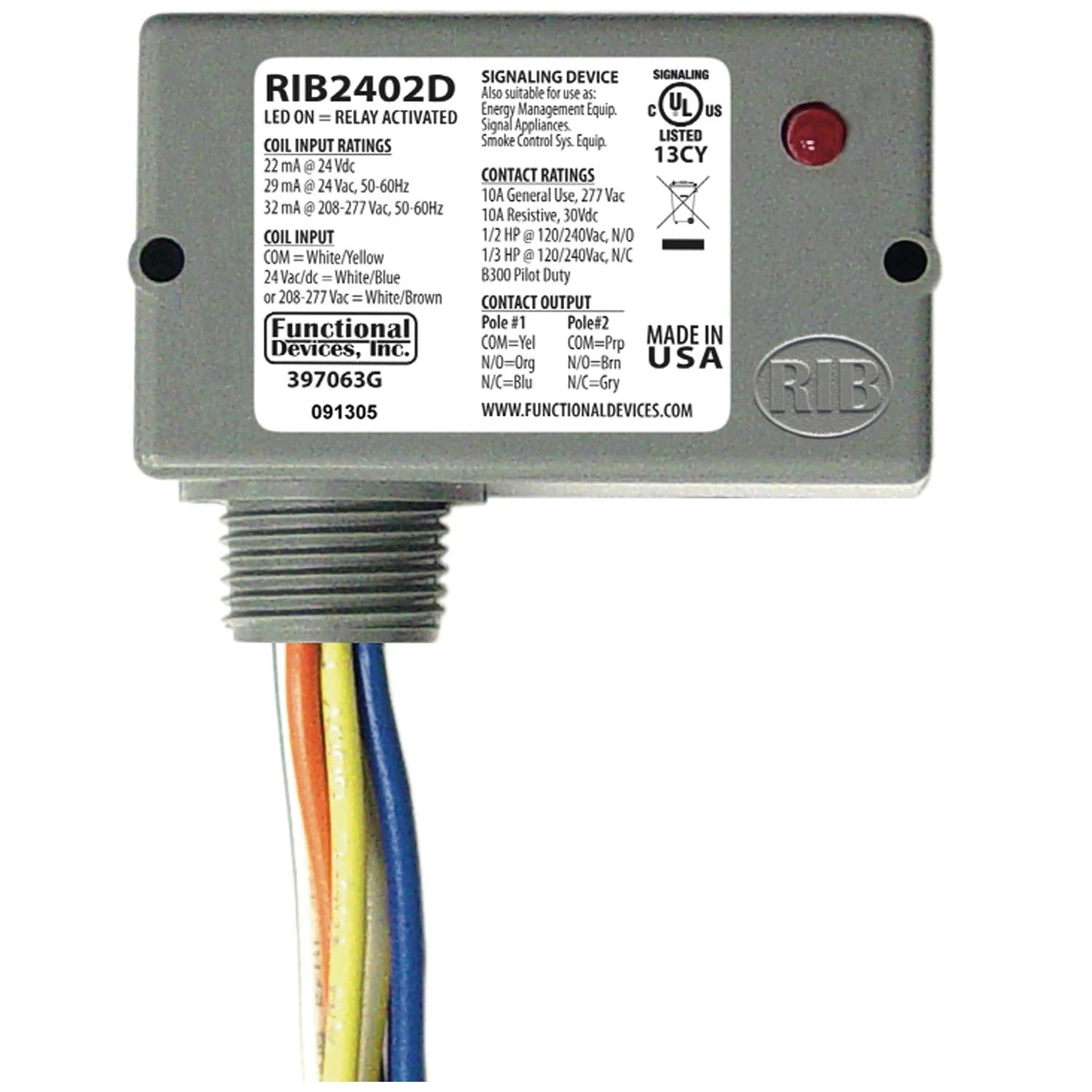

Functional Devices RIB2402D Enclosed Pilot Relay 10 Amp DPDT w/ 24 VAC/DC/208-277 VAC Coil

Product Description

The Functional Devices RIB2402D is an enclosed pilot relay with a 10 amp DPDT design. It operates with a 24 VAC/DC or 208-277 VAC coil, making it suitable for various electrical control applications.

• Operates with 24 VAC/DC or 208-277 VAC coil
• 10 Amp Double Pole Double Throw (DPDT) relay
• Encased in NEMA 1 housing for protection

Product Highlights

The Functional Devices RIB2402D is well-suited for controlling motors, switching pilot duty contacts, and managing resistive loads. It is designed for industrial and commercial use, ensuring reliable performance in a wide variety of electrical control scenarios.

Product Information

Standard Information

• MPN: RIB2402D
• Brand: Functional Devices

Technical Specifications

• Power Input: 24 VAC/DC, 208-277 VAC
• Relays: 1 DPDT
• Resistive Load: 10 A
• Motor Control: 1/2 HP
• Pilot Duty: B300
• Override Switch: No
• Gold Flash: No
• Weight: 0.35 lb
• Dimensions: 4.35 inches (L) x 3.25 inches (W) x 2.1 inches (H)
