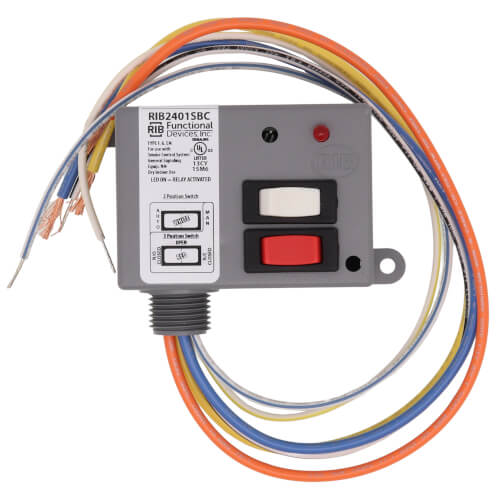

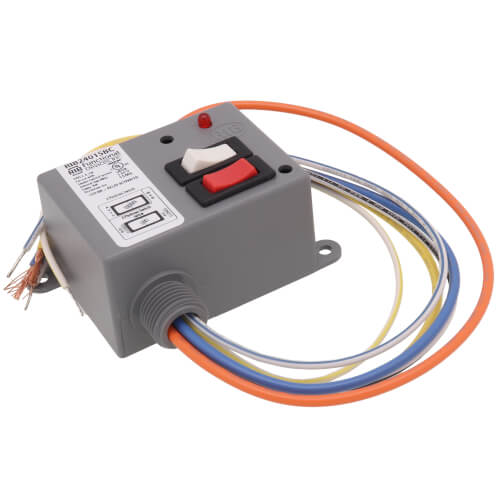

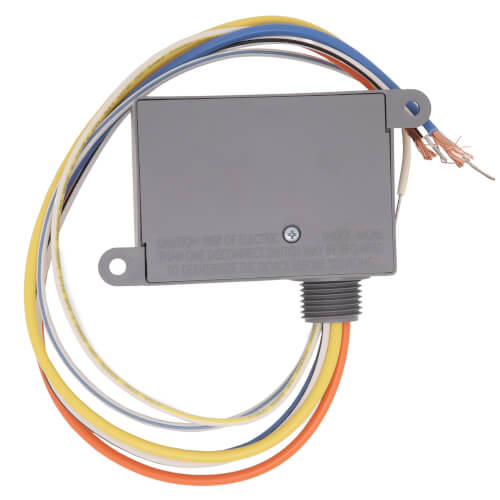

RIB RIB2401SBC Power Relay 20 Amp SPDT + Override 24 Vac/dc/120 Vac

Product Description

The RIB2401SBC, manufactured by Functional Devices, is a high-performance power relay designed to facilitate efficient electrical operations. This product features a single pole double throw (SPDT) configuration with an override function, capable of handling a 20A load. It operates on multiple coil voltages including 24 Vac/dc and 120 Vac, making it versatile for various electrical systems.

• Robust NEMA 1 housing provides protection and durability.
• Integrated override switch allows for manual control of the relay.
• LED status indicator for easy monitoring of relay operation.

Product Highlights

The RIB2401SBC relay offers reliable switching capabilities suitable for industrial applications. It is equipped with a continuous duty coil and features a life expectancy of at least 10 million mechanical cycles. Its operational temperature ranges from -30 to 140 degrees Fahrenheit, accommodating various environmental conditions.

Technical Specifications

• Relay Type: SPDT with override
• Coil Voltage: 24 Vac/dc, 120 Vac
• Contact Rating: 20 Amp
• Housing: NEMA 1
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95 percent noncondensing
• Life Expectancy: 10 million cycles
