Functional Devices RIB2401D-N4 Pilot Relay 10 Amp DPDT 24 Vac/dc/120 Vac NEMA 4X

Product Description

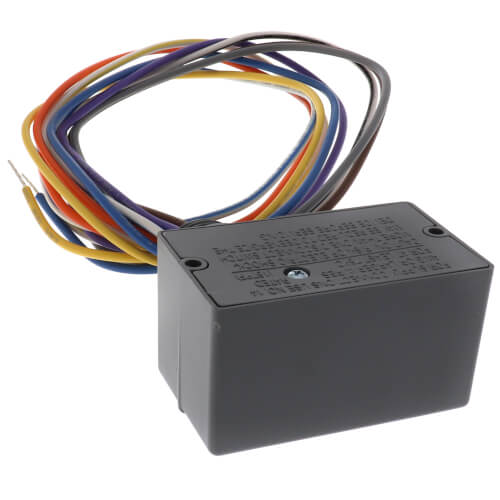

The Functional Devices RIB2401D-N4 is an enclosed pilot relay designed to facilitate robust control in industrial settings. This relay operates with a 24 Vac/dc and 120 Vac coil within a NEMA 4X enclosure for enhanced durability and protection.

• DPDT relay configuration with a 10 Amp switching capacity.
• Supports loads up to half HP, making it suitable for a variety of industrial applications.
• No override switch, ensuring consistent performance.

Product Highlights

Equipped with NEMA 4X enclosure, the RIB2401D-N4 offers superior resistance against environmental factors, making it ideal for harsh industrial environments. Its DPDT feature allows for reversing polarity with ease, optimizing operational flexibility.

Product Information

Standard Information

• Power Input: 24 Vac/dc, 120 Vac
• Functionality: DPDT Relay
• Usage: Resistive 10 A, Motor 1/2 HP, Ballast 20 A

Technical Specifications

• Dimensions: 3 inches length x 2 inches width x 2 inches height
• Weight: approximately 0.35 pounds
• Electrical Ratings: Pilot Duty B300
• Protection: NEMA 4X rated enclosure
• Applications: Suitable for controlling lighting, pumps, and other industrial equipment.
