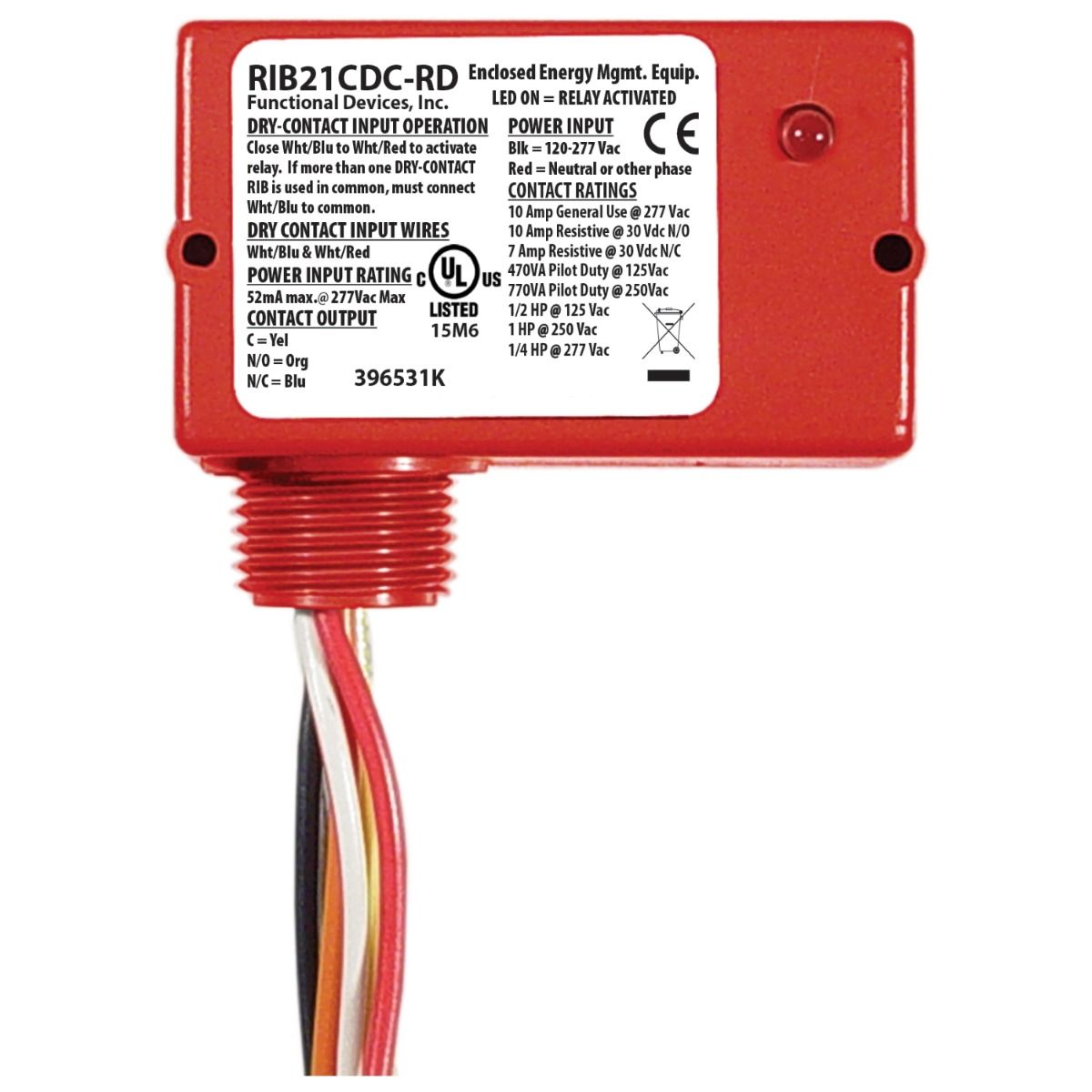

FUNCTIONAL DEVICES Functional Devices RIB21CDC-RD enclosed relay 10A SPDT, class dry contact input, 120-277VAC power input
FUNCTIONAL DEVICES Functional Devices RIB21CDC-RD enclosed relay 10A SPDT, class dry contact input, 120-277VAC power input

Functional Devices RIB21CDC-RD enclosed relay 10A SPDT, class dry contact input, 120-277VAC power input

FUNCTIONAL DEVICES
Brand: FUNCTIONAL DEVICES
SKU: RIB21CDC-RD
Availability: In Stock

Ships same day if ordered by 12 pm
$80.25
$80.25
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Functional Devices RIB21CDC-RD is an enclosed relay with a 10 Amp SPDT contact type, designed for Class 2 dry contact input applications. It operates with a 120-277 VAC power input, making it suitable for various electrical systems. This relay is engineered for commercial and industrial energy management, providing reliable control for pilot duty applications. Its robust design ensures consistent performance in demanding environments, offering a mechanical life of 10 million cycles.

  • Features one (1) SPDT Continuous Duty Coil contact type.
  • Offers an expected relay life of 10 million cycles minimum mechanical.
  • UL Listed for safety and compliance in various installations.

Product Highlights

This enclosed pilot relay features a Class 2 dry contact input and 120-277 VAC power, ideal for energy management systems.

Product Information

Standard Information

  • Brand: FUNCTIONAL DEVICES
  • Manufacturer Part Number: RIB21CDC-RD
  • Country of Origin: United States
Technical Specifications
Depth
1.5 inches (38.1 mm)
Width
2.8 inches (71.12 mm)
Height
1.7 inches (43.18 mm)
Mounting Type
Screw Mount
Contact Type
SPDT, SPST-NO
Product Type
Relay
Application
Pilot
Motor Rating
1/2 HP
Pilot Duty Rating
470 VA
Certifications
ROHS, UL File E68805
Current Rating
10 A
Input Voltage
120-277 VAC
Input Type
Class 2 Dry Contact
Number of Relays
1
Enclosure Rating
NEMA 1, plemum
Coil Voltage
120-277 VAC
Coil Current
120 VAC @ 42 mA, 208-277 VAC @ 62 mA, 120-277 VAC @ 50 mA
Contact Rating
20A resistive @ 277 VAC, 1110 VA pilot duty @ 277 VAC, 770 VA pilot duty @ 120 VAC, 20A ballast 277 VAC, N.O. 10A ballast 277 VAC, N.C 240W tungsten 120 VAC, N.C. 2 hp 277 VAC, 1 hp 120 VAC, 10A general use @ 250 VAC, 10A resistive @ 30 VDC, 1/2 hp 125-250 VAC, 470 VA pilot duty 120-240 VAC
Frequency
50/60 Hz
Controlling Contact
SPST, 7 VDC, 1µA minimum
Wire Length
16 inches (40.6 cm)
Operating Temperature
-30° to 140°F (-34.4° to 60°C)
Operating Humidity
5% to 95% non-condensing
Conduit Hub
1/2 inch NPT
Termination
Screw Terminals
Wire Rating
600 V
