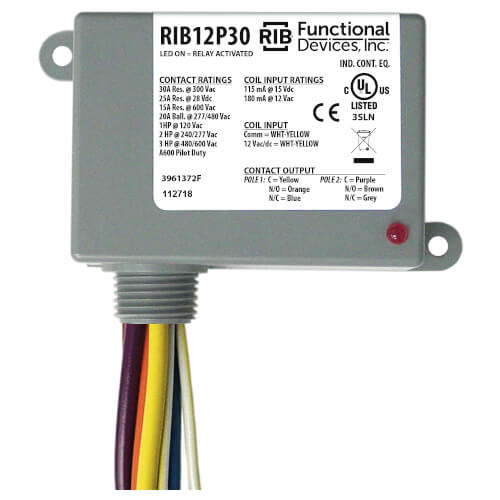

Functional Devices RIB12P30 Enclosed Relay 30A DPDT 12Vac/dc

Product Description

The Functional Devices RIB12P30 is a robust enclosed relay, ideal for controlling high power loads across various industrial applications. This product features a double pole double throw (DPDT) contact configuration with a 30 Ampere capacity on both 12 Volt alternating current and direct current supplies.

• Enhanced durability with a NEMA 1 housing offering protection in varied environments.
• LED indicators provide clear operational status, simplifying troubleshooting.
• Extended lifecycle exceeding 10 million mechanical cycles ensures reliability for sustained use.

Product Highlights

This enclosed relay is specifically designed for continuous duty, ensuring sustained performance even under harsh conditions. The coil operates at low power consumption levels, maximizing energy efficiency.

Product Information

Standard Information

• Operational Range: Capable of functioning in temperatures from -30 to 140 degrees Fahrenheit.
• Humidity Tolerance: Performs in environments with 5% to 95% non-condensing humidity.

Technical Specifications

• Contact Type: DPDT Continuous Duty Coil.
• Operating Time: Quick actuation time of 18 milliseconds.
• Approval Ratings: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS Compliant.
• Dimensions: Height: 2.30 inches, Width: 3.20 inches, Depth: 1.80 inches with a 0.50 inch NPT Nipple.
