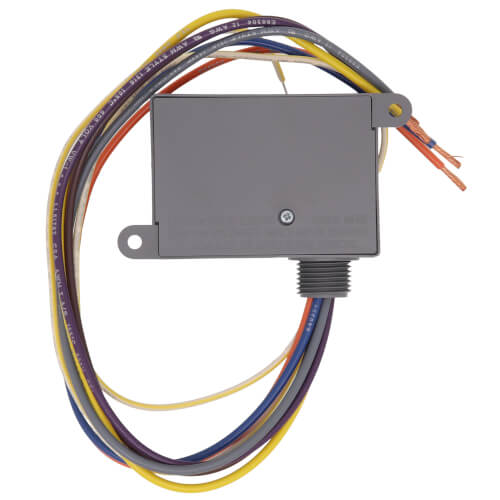

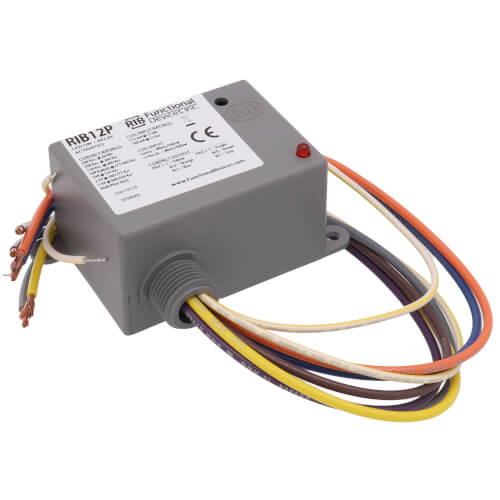

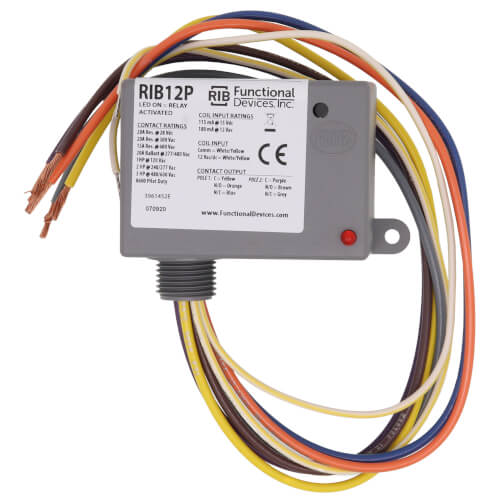

Functional Devices RIB12P Power Relay 12 VAC/VDC 20A Replacement RIB12P

Product Description

The Functional Devices RIB12P is a robust double-pole double-throw (DPDT) power relay designed for reliable operation in various circuits. With a capacity to handle 20 amperes and featuring a 12 VAC/VDC power coil, this relay is essential for efficient electrical controls.

• Dual voltage capability for flexible use in 12 VAC and 12 VDC applications
• Endurance of over 10 million cycles for prolonged mechanical reliability
• Housed in a NEMA 1-rated enclosure for enhanced protection and safety in plenum spaces

Product Highlights

Enjoy consistent performance with LED indicator status and quick setup thanks to its simple plug-in design. The relay is also equipped with 16-inch, 600V rated wiring for secure connections.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIB12P

Technical Specifications

• Contact Type: DPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Range: 5 to 95% (non-condensing)
• Operate Time: 18ms
• Relay Status: LED on when activated
• Dimensions: 2.30 x 3.20 x 1.80 inches with 0.50 inch NPT Nipple
• Wires: 16 inches, 600V Rated
• Approvals: UL Listed, UL60947, C-UL, CE, RoHS
