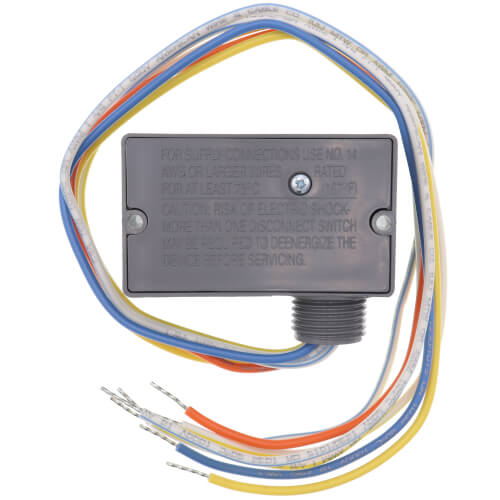

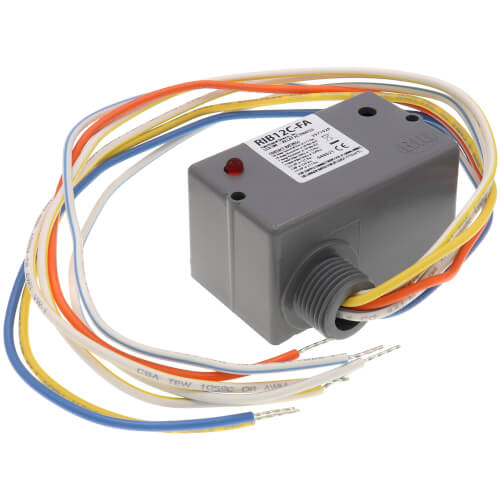

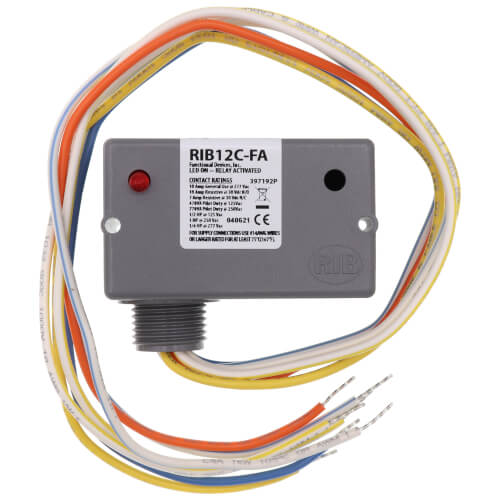

Functional Devices RIB12C-FA Enclosed Relay 10A SPDT w/ 12V AC/DC Coil

Product Description

The Functional Devices RIB12C-FA is an enclosed relay designed for reliable operation in various applications. It features a ten amp single pole double throw (SPDT) configuration with a twelve volt AC/DC coil. This relay is perfect for use in fire alarm systems among other industrial applications.

• Low current coil accepts a wide range of AC and DC voltages.
• UL listed for UL916 Energy Management and UL864 Fire.
• Integrated relay status indicator with LED.

Product Highlights

This relay offers a robust solution for electrical control needs, particularly in high-demand environments.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIB12C-FA

Technical Specifications

• Coil Voltage: 12V AC/DC
• Max Input Current: 10A
• Contact Type: SPDT
• Housing Color: Red
• Operating Temperature: -30 to 140°F
• Dimensions: 1.7 inches x 2.8 inches x 1.5 inches
• Relay Life Expectancy: 10 million cycles
• Approvals: UL Listed, UL916, UL864, CE
