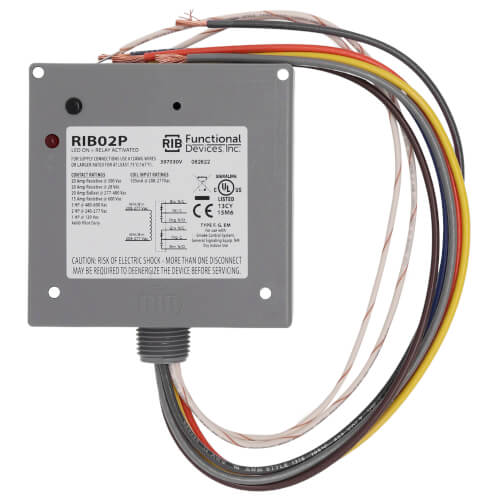

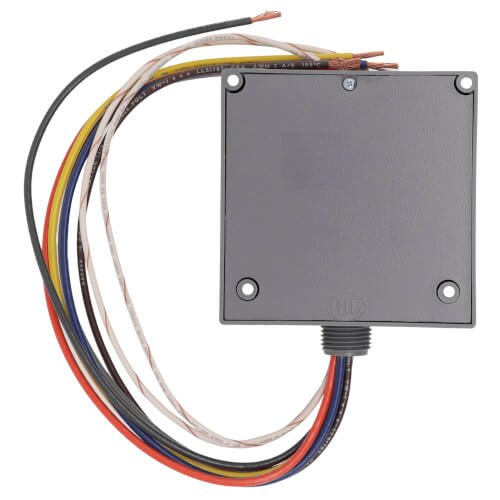

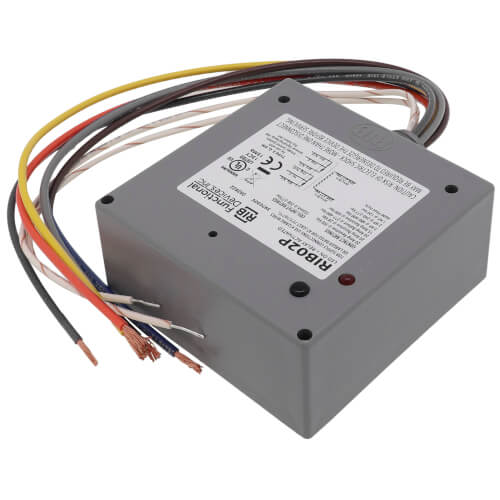

Functional Devices RIB02P Power Control Enclosed Relay 20 A DPDT 208-277 VAC

Product Description

The Functional Devices RIB02P is a robust enclosed relay designed for reliable performance in industrial settings. Featuring a DPDT (Double Pole, Double Throw) contact form, this relay operates with a coil voltage of 208 to 277 VAC, suitable for a wide range of applications.

• DPDT contact form provides versatility in circuit control
• Rated for 20 Amps, handling substantial current loads
• Enclosed design ensures protection against environmental factors

Product Highlights

This device is engineered to facilitate easy and safe installation with its compact design and clear access terminals. The RIB02P relay is ideal for applications requiring reliable switching and control of electrical circuits in demanding industrial environments.

Product Information

Standard Information

• Brand: Functional Devices
• Model Number: RIB02P

Technical Specifications

• Coil Voltage: 208-277 VAC
• Contact Rating: 20 Amps
• Contact Type: DPDT
• NEMA Rating: NEMA 1
• Operating Temperature: -30 to 140 degrees Fahrenheit
• Humidity Tolerance: 5% to 95% non-condensing
• Approvals: UL Listed, UL916, UL864, CE, RoHS
